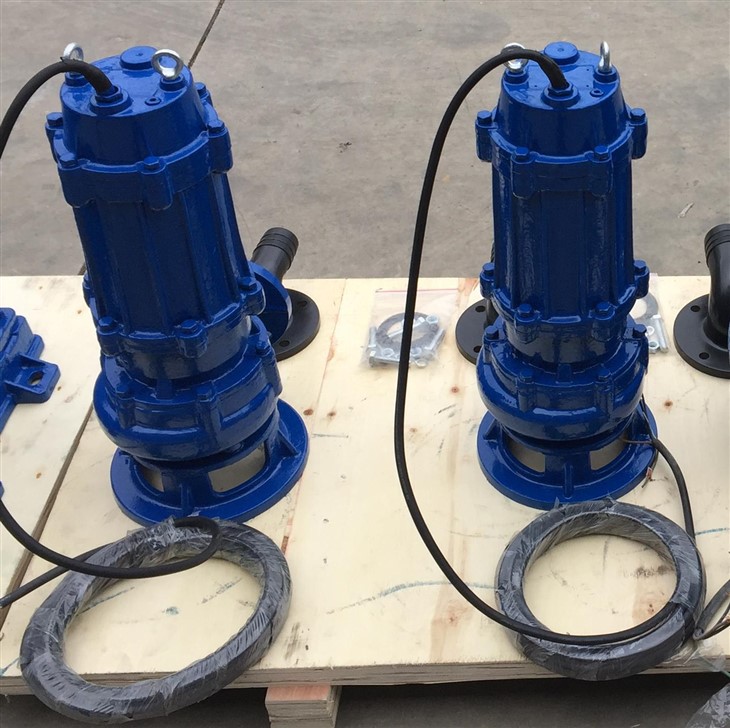

Submersible Sewage Pump
Product Details
WQ series submersible sewage pumps are mainly used in municipal engineering, industrial buildings, hotels, hospitals, civil air defense, mining and other industries. They can be used to discharge sewage, wastewater, rainwater and urban domestic water containing solid particles and various long fibers.
Model meaning of submersible sewage pump:
Submersible sewage pump use conditions:
1. The medium temperature should not exceed 40PC, the medium density is ≤1200Kg/m³, and the PH value is in the range of 5-9.
2. The pump must not be lower than the minimum liquid level during operation, refer to the "▶Minimum Liquid Level" (including automatic cooling system) in the installation dimension diagram. ▽ is the minimum liquid level when there is no automatic cooling system.
3. The rated voltage is 380V and the rated frequency is 50Hz. The motor can only operate normally when the deviation between the rated voltage and the rated frequency is not greater than 5%. 4. The maximum diameter of the solid particles passing through the pump shall not be greater than 50% of the discharge diameter of the pump body.
4. Viewed from the pump suction port, the impeller rotates counterclockwise.
The structure of submersible sewage pump:

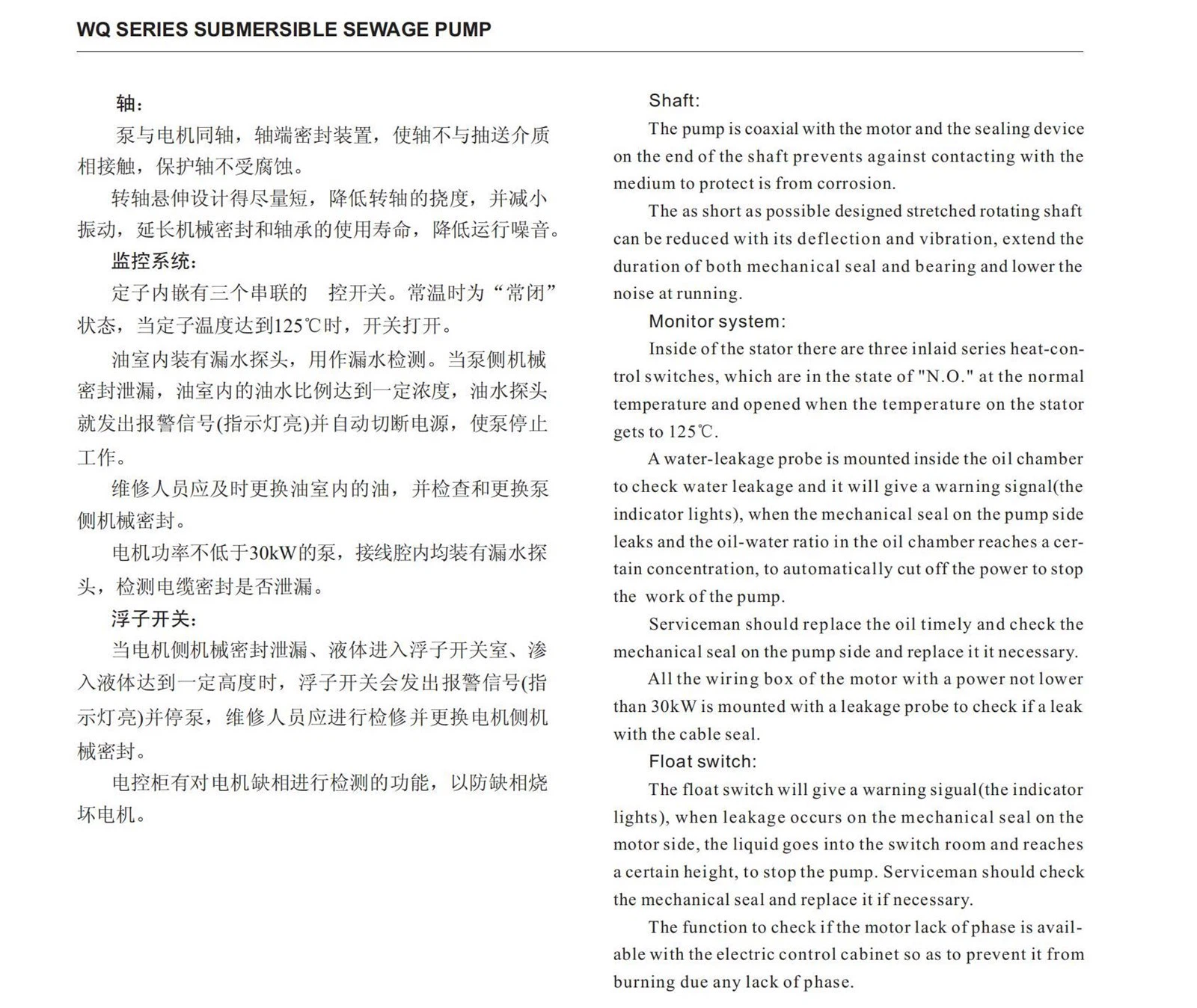

Structural description of submersible sewage pump:

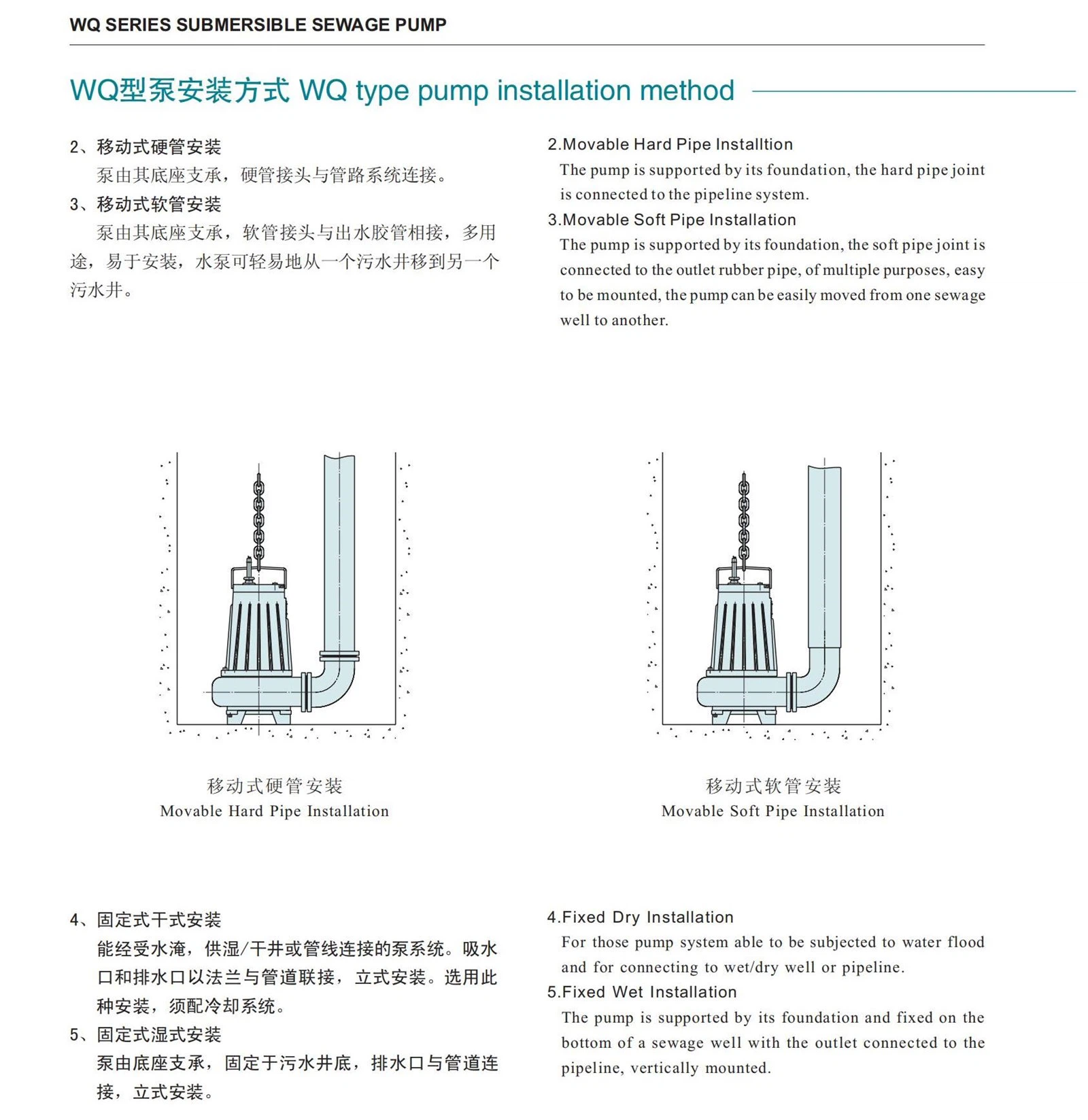

Installation method of submersible sewage pump:
Submersible sewage pumps have the following functions and features:
High durability: capable of handling sewage containing solid particles or fibers.
Anti-clogging design: impeller and channel design prevents operation from being affected by clogging.
Automatic control function: some submersible sewage pumps support liquid level control to achieve automatic start and stop.
Strong adaptability: can work in liquid for a long time.
Depending on the specific purpose, submersible sewage pumps of different materials (such as cast iron, stainless steel, corrosion-resistant materials) can also be selected to meet the needs of different media and environments.
