Submersible Slurry Pump With Agitators for minning
Product Details

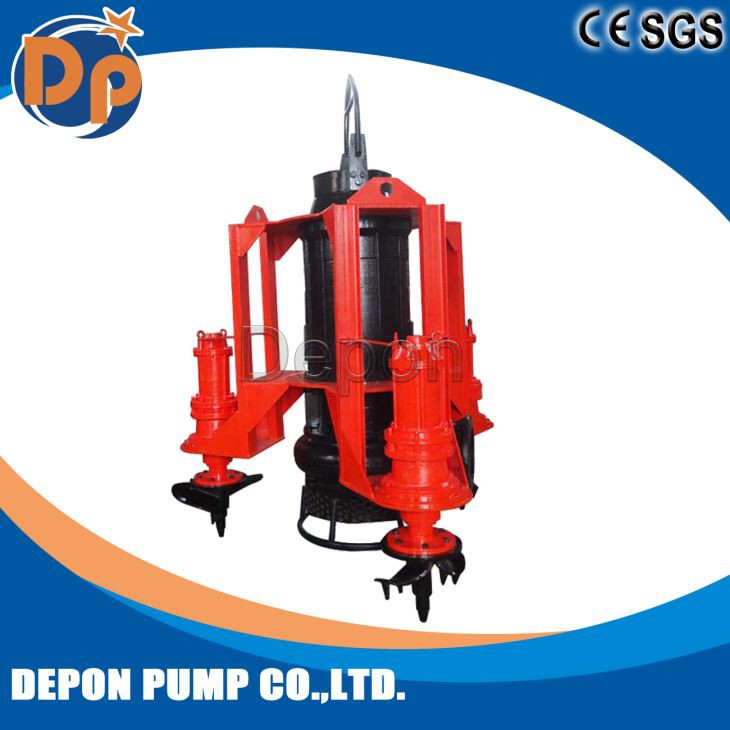

Centrifugal Submersible Slurry Pump With Agitator
General Information
The DEPUMP SS Series Submersible Slurry Pumps are electro submersiblcentrifugal pumps designed for pumping abrasive and high density slurries in mining, heavy industry, civil construction and municipal applications.
Applications
Transfer of waste water, effluent and solids laden water for:
• Building Services
• Sumps and Basements
• Mining
• Civil Construction
• Industry
• Municipal
• Processing
• Water Treatment

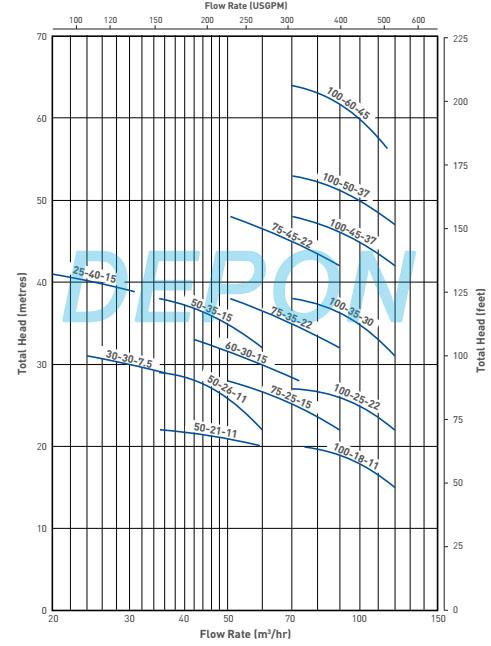

Technical Data
Model Selection Table
| Model | Outlet Dia. (mm) | Capacity (m³/h) | Head (m) | Power (Kw) | Speed (r/min) | Max.Dia.of Solid (mm) | Pump Weight (kg) |
| SS45-15-5.5 | 80 | 45 | 15 | 5.5 | 1460 | 13 | 100 |
| SS15-20-5.5 | 80 | 15 | 20 | 5.5 | 1460 | 13 | 100 |
| SS30-30-7.5 | 80 | 30 | 30 | 7.5 | 1460 | 13 | 114 |
| SS50-26-11 | 80 | 50 | 26 | 11 | 1460 | 13 | 165 |
| SS75-25-15 | 100 | 75 | 25 | 15 | 1460 | 13 | 220 |
| SS150-18-18.5 | 150 | 150 | 18 | 18.5 | 980 | 32 | 550 |
| SS200-12-22 | 150 | 200 | 15 | 22 | 980 | 45 | 580 |
| SS60-46-30 | 150 | 60 | 46 | 30 | 980 | 21 | 700 |
| SS150-30-30 | 150 | 150 | 30 | 30 | 980 | 21 | 550 |
| SS300-20-37 | 200 | 300 | 20 | 37 | 980 | 28 | 775 |
| SS200-30-45 | 150 | 200 | 30 | 45 | 980 | 36 | 1000 |
| SS500-15-45 | 250 | 500 | 15 | 45 | 980 | 46 | 1100 |
| SS250-35-55 | 150 | 250 | 35 | 55 | 980 | 36 | 1140 |
| SS600-15-55 | 250 | 600 | 15 | 55 | 980 | 46 | 1140 |
| SS350-35-75 | 200 | 350 | 35 | 75 | 980 | 28 | 1550 |
| SS500-20-75 | 200 | 500 | 20 | 75 | 980 | 25 | 1550 |
| SS200-60-90 | 150 | 200 | 60 | 90 | 980 | 14 | 1550 |
| SS400-40-90 | 200 | 400 | 40 | 90 | 980 | 28 | 1550 |
| SS600-30-110 | 200 | 600 | 30 | 110 | 980 | 28 | 1970 |
| SS1000-18-110 | 300 | 1000 | 18 | 110 | 980 | 50 | 1970 |
| SS500-45-132 | 200 | 500 | 45 | 132 | 980 | 28 | 2000 |
| SS1000-22-132 | 300 | 1000 | 22 | 132 | 980 | 50 | 2000 |
| SS650-52-160 | 200 | 650 | 52 | 160 | 980 | 28 | 2650 |
| SS780-50-185 | 300 | 780 | 50 | 185 | 980 | 38 | 3330 |
| SS800-55-220 | 300 | 800 | 55 | 220 | 980 | 38 | 3400 |
| SS1250-35-220 | 350 | 1250 | 35 | 220 | 980 | 45 | 3400 |
| SS1750-30-250 | 350 | 1750 | 30 | 250 | 980 | 55 | 3500 |
| SS2000-35-315 | 400 | 2000 | 35 | 315 | 980 | 60 | 3700 |
Note: Please contact us, we will give you the better solution.
FAQ
A: What kind of company you are?
Q: Shijiazhuang DEPUMP Pump Company is professional manufacturer in pumps. After accumulation and development of many years, we have formed a complete system of pump design, selection, application, manufacture, marketing and maintenance. We have passed CE, SGS certificate. Our customers are at home and abroad. Hope to coorperate with the worldwide friends.
Q: What's your MOQ?
A: Trial sample order is OK.
Q: What are your payment terms?
A: T/T, L/C, D/P, D/A or as customer required
Q: How about the warranty?
A: One year warranty for pumps, it depends on other pump working condition details.
Q: What is the delivery time?
A: 7-30 days according to customer quantities.
Q: Can you do OEM brand?
A: Yes, Welcome.
Q: What information should I offer to get pump solution?
1, Head: m
2, Flow: m3/h
3, Max Solid size: mm
4, Particle shape (smooth or sharp):
5, Medium pH level:
6,Specific Gravity of the Medium:
7, Temperature:
8, Drive type:
9. Power supply: Electric or Dlesel
10, Voltage and Frequency of the Motor:
