Submersible Sludge Pump Centrifugal Slurry Pump

Submersible sludge pump specifications

Pump model: SS50-35-15

Outlet size: 4inch

Flow: 50m3/h

Head: 35m

Power: 15kw

Speed: 1460rpm

Efficiency.: 47%

Max.Dia.of solids: 0.5 inch

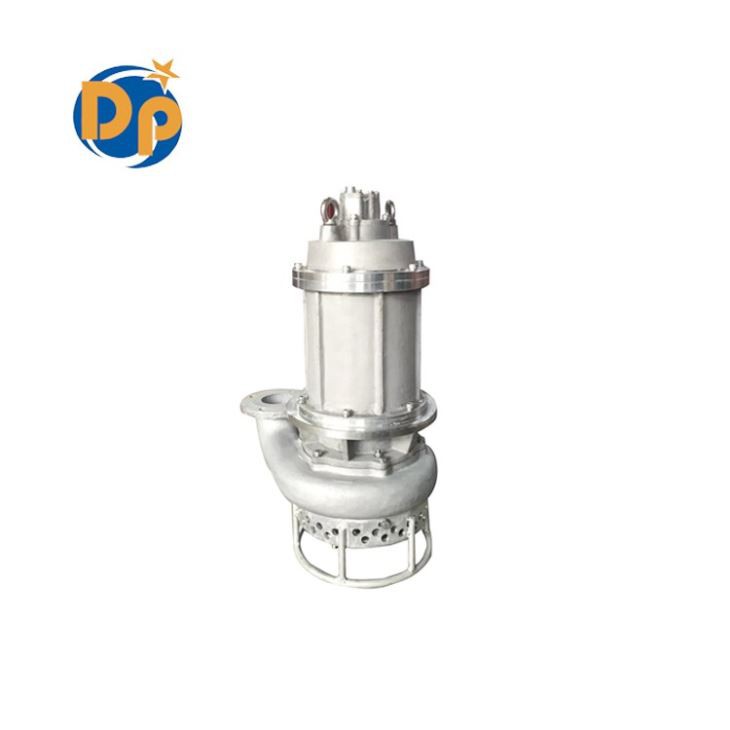

Pump picture:

Submersible slurry pump main features are as follows:

1. The whole machine is a dry motor pump structure. The motor is protected by mechanical seal, which can effectively prevent high-pressure water and impurities from entering the inner cavity of the motor.

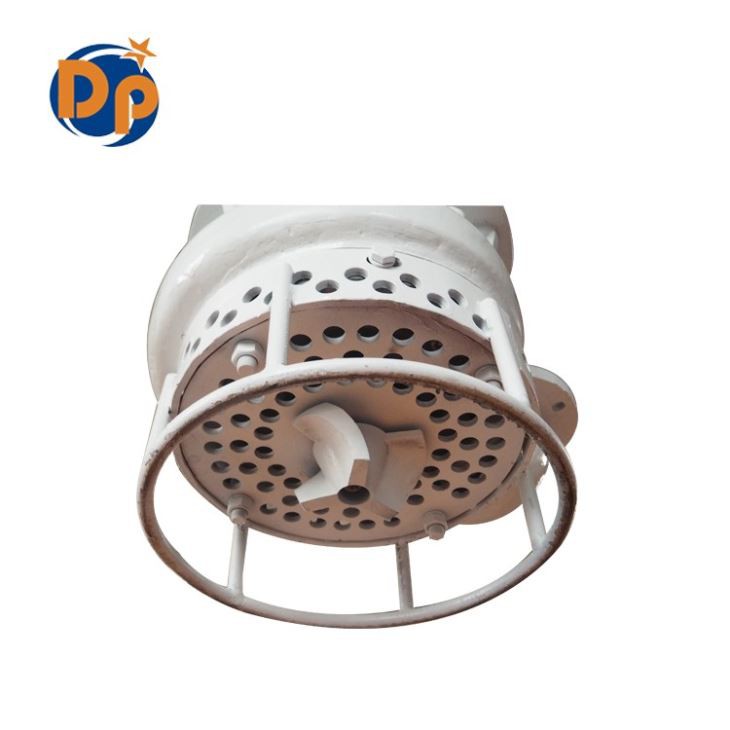

2. In addition to the main impeller, there is also a stirring impeller, which can stir the sludge deposited at the bottom of the water into turbulence and then extract it.

3. Impeller, mixing impeller and other main flow passage parts are made of high wear-resistant materials, which are wear-resistant, corrosion-resistant, non clogging, and have strong blowdown ability, and can effectively pass through large solid particles.

4. Not limited by suction head, high efficiency of slag suction and more thorough desilting.

5. No need for auxiliary vacuum pump, lower investment.

6. There is no need for auxiliary mixing or spraying device, so it is easier to operate.

7. When the motor submerges into the water, there is no need to build complex ground protection and fixed devices, so the management is easier.

8. The impeller is in direct contact with the deposition surface, and the concentration is controlled by the submergence depth, so the concentration control is more free.

9. The equipment is directly submerged to work, without noise and vibration, and the site is cleaner.

We have the key to deal with the pump! hope to win the order together!

We shall be pleased to send you our quotations upon receipt of your specifications.
