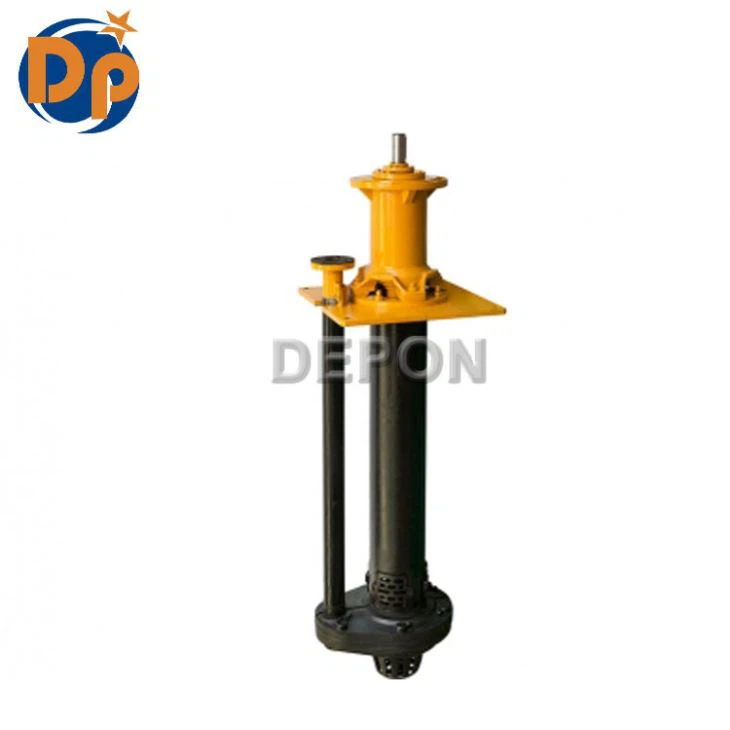

Vertical Centrifugal High Pressure Slurry Sump Pump

DE PUMP is the manufacture for slurry pumps ,sewage pumps and water pumps.Vertical centrifugal high pressure slurry sump pump Max.Capacity: >400 L/min,Max.Head: >150m.

Product Details

Vertical centrifugal high pressure slurry sump pump

MSP sump slurry pump

Basic Info

Model NO.: MSP(R) vertical sump slurry pump
Max.Capacity: >400 L/min
Impeller Number: Single-Stage Pump
Influent Type of Impeller: Single Suction Pump
Pump Casing Combined: Verticaljoint Surface Pump
Impeller: Closed
Under The Liquid Slurry Pump Condition: New
Connect: Belt or Coupling
OEM: Available
Transport Package: Fumigated Wooden Case
Origin: China
Max.Head: >150m
Driving Type: Motor
Working Pressure: High Pressure Pump
Position of Pump Shaft: Vertical Pump
Mounting Height: Suction Centrifugal
Usage: Pump, Pumps
Driver: Electrical Motor or Diesel Engine
Work: Under Liquid
Trademark: DE PUMP
Specification: Class One
HS Code: 841370

Product Description

Centrifugal Vertical Sump Slurry Pump

Series MSP(R) slurry pump is centrifugal vertical sump pump, work under fluid. It widely used for delivery abrasive, high density slurry with large particle in the metallurgy, mine, power plant, chemical, and other industry.

Performance Range
Flow rate: 17~1267m3/h
Head: 4~40m
Outlet pressure: 4Bar
Outlet flange: 40~300mm

Application
Minerals processing and Tailing delivery CIL (Carbon-In-Leaching) gold processing
Accident slurry return Coal preparation
Sand and gravel discharging Chemical processing
Effluent handing

vertical slurry pump

Designing Features

1. Material construction optional
MSP: abrasion resisting metal constructio
MSPR: anti-corrosive rubber construction

Metal construction

Rubber construction

2. Do not need any shaft seal or sealing water. Also worked well under insufficient suction duty.
3. The type with "L" is the pump with extension shaft. It suitable to deep condition. It has guid bearing. So it more stable and used more wide. However the flushing water is necessary on the guide bearing part.
4. The agitator is available
5. Construction

No.	Part Name	Part No.
1	Bearing housing	004
2	Bearing sleeve	008
3	Bearing	009
4	Bearing	009D
5	Back liner	041
6	Suction joint	060
7	Shaft	073
8	Shaft sleeve ejector	077
9	Bearing seal	089
10	Casing	092
11	Column	102
12	Strainer	116
13	Discharge pipe	154
14	Flinger	184
15	Impeller	206
16	O-ring	217
17	Spacer set	290
18	Suction pipe	322
19	Lower strainer	1162
20	Discharge pipe joint	204
