Slurry Sand Dredging Pump

Slurry Sand Dredging Pump refers to a machine that increases the energy of the solid and liquid mixed media by means of centrifugal force (the rotation of the impeller of the pump), and converts electrical energy into the kinetic energy and potential energy of the medium. Mainly applicable to: mining, power plants, dredging, metallurgy, chemical, building materials and petroleum industries.

Product Details

Today we are going to introduce one of our Slurry Pumps--Horizontal Centrifugal Slurry Sand Dredging Pump

This kind of pump is mainly used on the ground. According to different working conditions, there are a variety of driving methods and connection methods. And according to different media, the pump has a variety of materials to choose from.

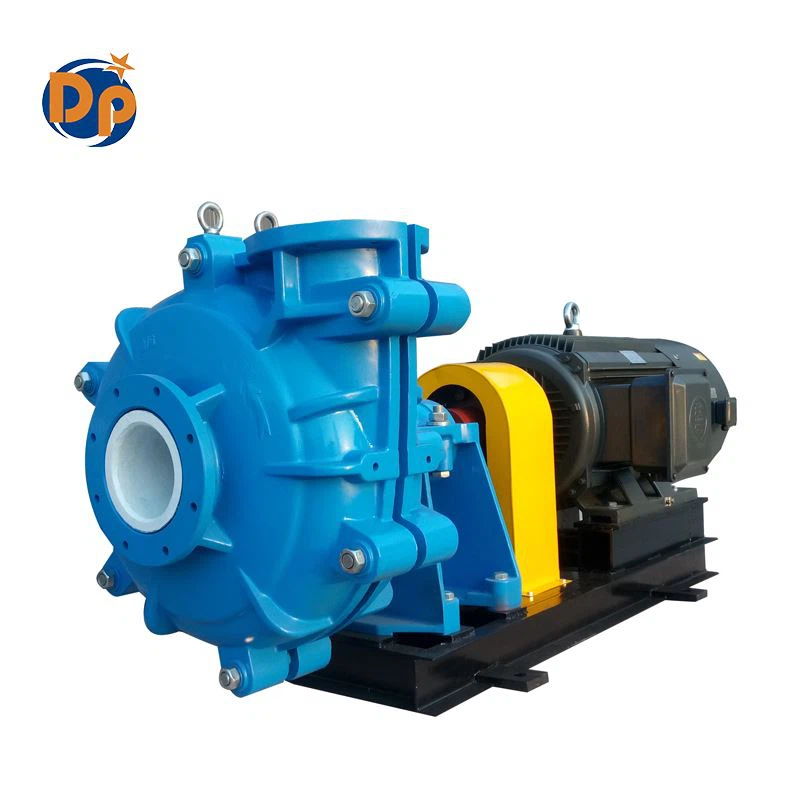

Sand Slurry Pump (1)

Ⅰ. Driven Methods of Slurry Sand Dredging Pump

There are generally two driving methods

1. Electric motor driven

2. Diesel engine drive

Most of our customers have generators under working conditions and they choose the motor drive mode. This method is more affordable than diesel engines.

Usually the voltage is 380v/50Hz/3Phase

But when there is no power supply in the working condition, we can also provide diesel engine to drive, and we need the data of pump head and pump flow, so that we can provide the best solution.

slurry pump driven

Ⅱ. Connection Methods of Slurry Sand Dredging Pump

1. Direct Connection

Pump and motor are directly connected. This is the most common and most commonly used connection method for many working conditions.

2.CRz Connection

The pump and the motor are placed horizontally, and the belt pulley is used to connect the Slurry Sand Dredging Pump and the motor. This connection method is mainly used when the speed of the pump and the motor are different. The function is to adjust the speed to achieve the required flow and head.

On the other hand, if the working condition space is small, this connection method is also more appropriate.

CRz

3.ZV Connection

Similar to CRz, but in this connection mode, the position of the motor is higher than the position of the pump,Pump and motor are connected by pulley.
