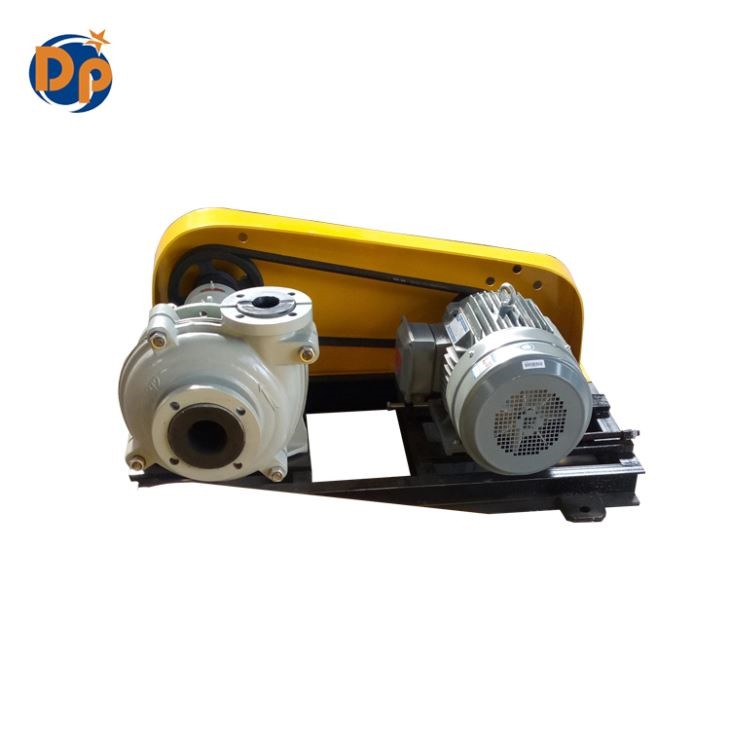

Centrifugal Belt Drive Slurry Pump For Ball Mill Discharge Pump
Product Details
Centrifugal belt drive slurry pump for Ball Mill Discharge Pump
The Depump® slurry pump is the world’s standard for the most difficult mill duties. A wide variety of
impellers and shaft seals provide a perfect fit for a wide range of applications. The Depump® slurry pump
provides excellent wear life while maintaining efficiency during the wear cycle providing the best total
operating cost.
Application:
Centrifugal mining slurry pump are widely used in mining, power, metallurgy, coal, dealing, building material and other industrial lines to pump concentrate, tailing, sludge and other abrasive, high density slurry.
Minerals Flotation Processing
Electric Factory Coal Preparation
Coal Washing
Chemical Medium Processing
Effluent Handling
Sand And Gravel Handling
Performance Curve
Pump Structure

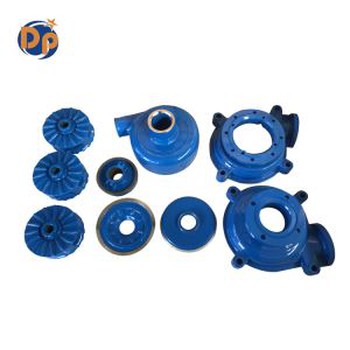

Materials of Construction
LINERS | IMPELLERS | CASING | BASE | EXPELLER | EXPELLER RING | SHAFT SLEEVE | SEALS | |
Standard | Chrome Alloy | Chrome Alloy | SG Iron | SG Iron | Chrome Alloy | Chrome Alloy | SG Iron | Rubber |
Options | Ferralium | Ferralium | SG Iron | MS | NI Resist | NI Resist | EN56C | Ceramic |
MAH SLURRY PUMP PERFORMANCE PARAMETERS
Type | Allowable Mating Max. Power(Kw) | Clear Water Performance | Impeller | |||||
Capacity/Q m3/hr | Head/m | Speed/rpm | Max Efficiency/% | NPSH/m | Nos of Vane | Impeller Diameter/mm | ||
1.5X1-MAH | 15 | 12.6--28.8 | 6--68 | 1200--3800 | 40 | 2--4 | 5 | 152 |
2X1.5-MAH | 15 | 32.4--72 | 6--58 | 1200--3200 | 45 | 3.5--8 | 5 | 184 |
3X2-MAH | 30 | 39.6--86.4 | 12--64 | 1300--2700 | 55 | 4--6 | 5 | 214 |
4X3-MAH | 30 | 86.4--198 | 9--52 | 1000--2200 | 71 | 4--6 | 5 | 245 |
6X4-MAH | 60 | 162--360 | 12--56 | 800--1550 | 65 | 5--8 | 5 | 365 |
8X6-MAH | 300 | 360--828 | 10--61 | 500--1140 | 72 | 2--9 | 5 | 510 |
10X8-MAH | 560 | 612--1368 | 11--61 | 400--850 | 71 | 4--10 | 5 | 686 |
12X10-MAH | 560 | 936--1980 | 7--68 | 300--800 | 82 | 6 | 5 | 762 |
14X12-MAH | 560 | 1260--2772 | 13--63 | 300--600 | 77 | 3--10 | 5 | 965 |
16X14-MAH | 1200 | 1368--3060 | 11--63 | 250--550 | 79 | 4--10 | 5 | 1067 |
18X16-MAH | 1200 | 2520--5400 | 13--57 | 200--400 | 85 | 5--10 | 5 | 1370 |
Company Profile
DE Pump Co.,Ltd is Specialized in the manufacturer and sales of slurry pump, sewage pump, water pump and pump parts.
We Own Mould Workshop, Casting Workshop, Machining Workshop and Assembly Workshop .
DE PUMP willing to undertake any OEM(Origin Equipment Manufacture) order for pump and mining equipment according to the drawing or sample.
Considering various requirement for material in the market, we can supply wet end part material as following, metal material A05,A07,A12,A33,A49,A61 and etc. Rubber material R08, R26, R33,R55, S01, S12, S21, S31, S42 and etc. Given customer's special request for abrasion and erosion in pumping environments, we can supply the material according to customer's material formula or sample to meet your need.
The Products are widely used in mining , power, metallurgy, coal , dredging, building material and other industrial lines to pump concentrate, tailing,sludge, and other abrasive high density slurry.
DE Main Pump Model
AH series | L(R) ,M | HH | SP(R) | G | AF Series |
1.5/1B-MAH(R) | 20A-ML | 1.5/1C-MHH | 40PV-MSP(R) | 6/4D-MG | 2QV-MAF |
2/1.5B-MAH(R) | 50B-ML(R) | 3/2D-MHH | 65QV-MSP(R) | 8/6E-MG | 3QV-MAF |
3/2C-MAH(R) | 75C-ML | 4/3E-MHH | 100RV-MSP(R) | 10/8F-MG | 6SV-MAF |
4/3C-MAH(R) | 100 D-ML | 4/3X-MHH | 150SV-MSP(R) | 10/8S-MG | 8SV-MAF |
6/4D-MAH(R) | 150E-ML | 6/4F-MHH | 200SV-MSP | 12/10G-MG | |
6/4E-MAH(R) | 300S-ML | 6/4X-MHH | 250TV-MSP | 14/12G-MG | |
8/6E-MAH(R) | 10/8 R-MM | 6S-MH | 14/12T-MG | ||
8/6R-MAH(R) | 10/8 E-MM | 8/6S-MH | 16/14 G-MG |
Manufacture of Sand pump, Dredging pump, Slurry Pump
Please contact me for more details.
DE Main products
1. MAH , MHH,MZJ Horizontal Slurry Pump
2. MSP Vertical sump pump
3. SS Submersible slurry pump
4. MG Horizontal sand gravel pump
5. IS(ISA/ISO), D, S end suction water pumps
6. WQ Dredging pump
7. AF Froth Pump
8. OEM slurry pump parts and Casting machinery parts
Welcome to contact me for more details.
