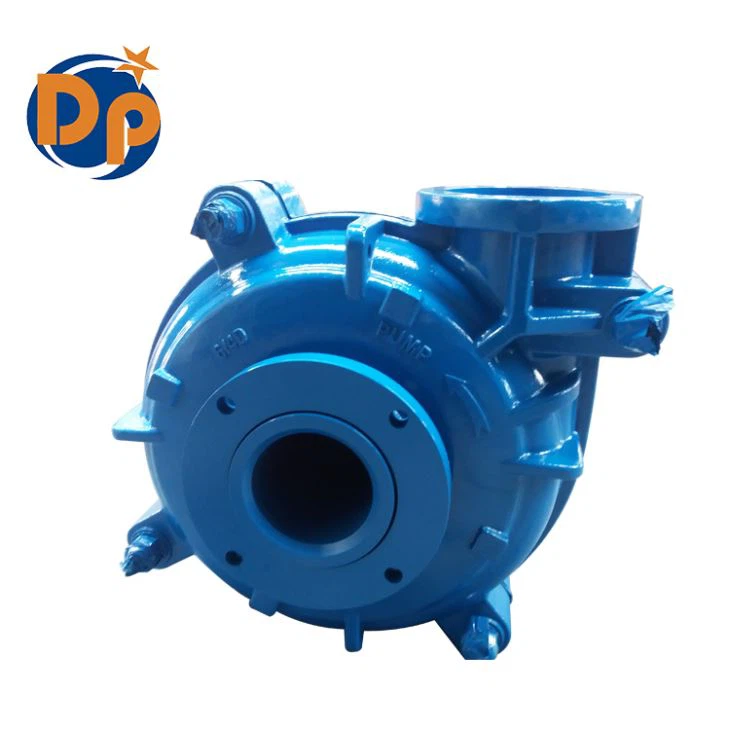

6/4D-MAH Big Slurry Resistant Metal Liners Pump Factory Price

Name: 6/4D-MAH Big Slurry Resistant Metal Liners Pump Factory Price Manufacturers and Factory China - Price List - DEPUMP
Brand: DEPUMP
SKU: 93523708

DEPUMP Cylindrical structure is used for its bearing assembly, which is easy for adjusting the space between impeller and front liner easily, being removed completely when being repaired. Grease lubricant is applied for bearing lubrication.

Product Details

6/4D-MAH big slurry resistant metal liners pump factory price

Basic Information

Model: 6/4D-MAH

Bare shaft pump

DEPUMP Cylindrical structure is used for its bearing assembly, which is easy for adjusting the space between impeller and front liner easily, being removed completely when being repaired. Grease lubricant is applied for bearing lubrication.

6X4D MAH 拷贝 (6)

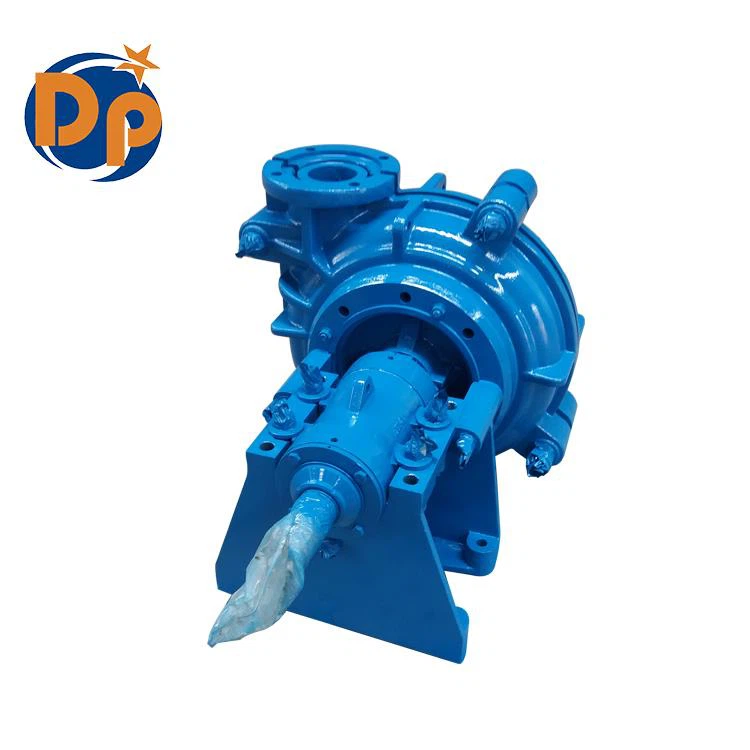

6X4D MAH 拷贝 (8)

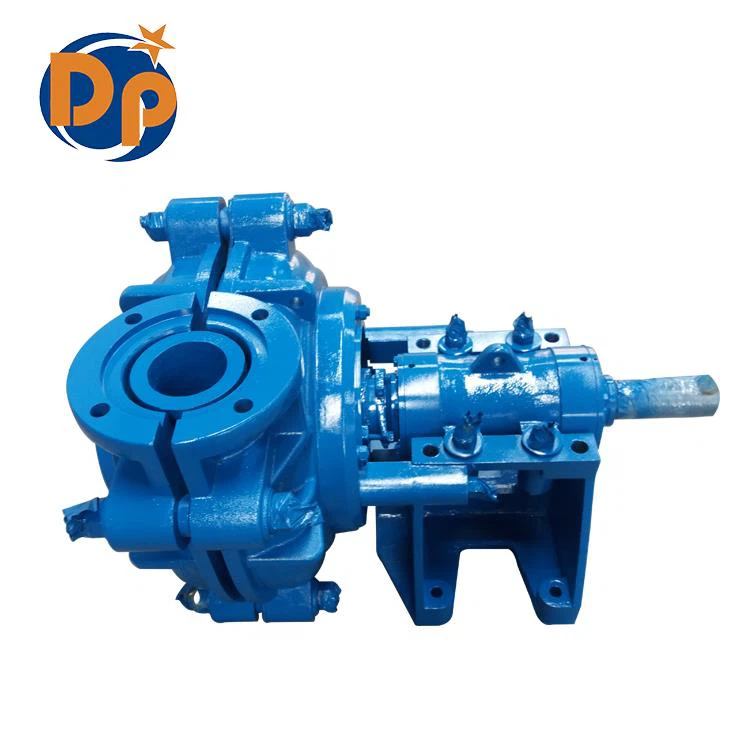

6X4D MAH 拷贝 (7)

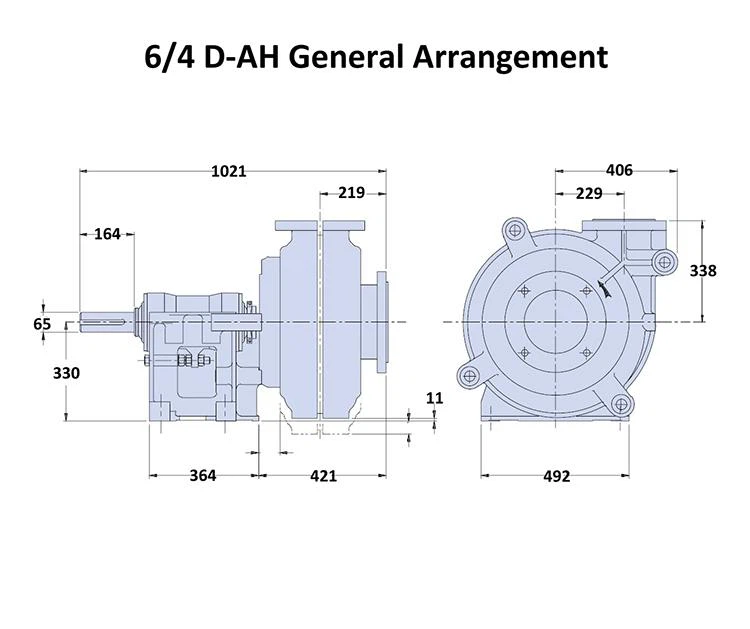

Pump dimension--6/4D-MAH

6-4D MAH DRAWING 拷贝

Performance Curve--6/4D-MAH

Materials of Slurry pump

	LINERS	IMPELLERS	CASING	BASE	EXPELLER	EXPELLER RING	SHAFT SLEEVE	SEALS
Standard	Chrome Alloy Natural Rubber	Chrome Alloy Natural Rubber	SG Iron	SG Iron	Chrome Alloy or SG Iron	Chrome Alloy or SG Iron	SG Iron	Rubber and Nitrile
Options	Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Viton Nitrile EPDM Hypalon	Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Nitrile Hypalon	SG Iron Various grades	MS Fabricated Cast Iron	NI Resist Ferralium Hastelloy C Polyurethane 316 SS W151	NI Resist Ferralium Hastelloy C 316 SS Rubber W151 Polyurethane Neoprene Butyl Nitrile	EN56C Ferralium Hastelloy C Titanium 316 SS 304 SS	Ceramic Stellite Chrome Oxide Nordel Neoprene Viton
