SS Under Water Submersible Slurry Pump Dredge Sand

General Information

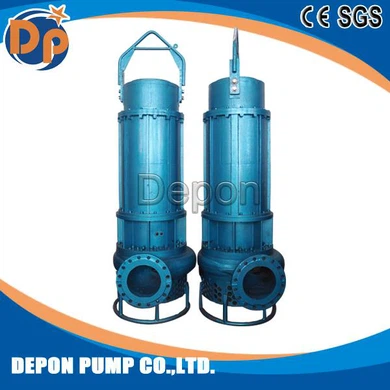

The DEPUMP SS Series Submersible Slurry Pumps are electro submersible centrifugal pumps designed for pumping abrasive and high density slurries in mining, heavy industry, civil construction and municipal applications.

Applications
Transfer of waste water, effluent and solids laden water for:
• Building Services
• Sumps and Basements
• Mining
• Civil Construction
• Industry
• Municipal
• Processing
• Water Treatment

Technical Data

Features
• 27% chrome white iron impeller.
• 27% chrome white iron integral agitator.
• 27% chrome white iron volute.
• Replaceable 27% white iron back plate.
• 420 stainless steel shaft
• 420 stainless steel shaft sleeve.
• 420 stainless steel strainer.
• All fasteners 420 stainless steel.
• Large cut water casing clearance.
• Low speed electro-submersible motor provides reliable continuous operation.
• Motor incorporates thrust bearing temperature and moisture sensors.
• F class motor insulation as standard, with optional H class insulation available for reliable operation in high temperature applications.
• Heavy duty cast iron motor construction.
• Heavy duty mild steel support frame with round base provides excellent stability.
• Double mechanical seal with carbon/ceramic on wet end and tungsten/ceramic on the drive end provide effective sealing between motor and wet end.
• Mechanical seals are oil bath lubricated.
• External cooling options available.
• Available with a wide range of protective options and paint options.
• Oil chamber incorporates a water leakage probe which detects when water-to-oil ratio is too high and cuts off power to prevent motor damage due to oil contamination.
• Motor incorporates a float switch in the bottom to detect the ingress of water and cut power to prevent motor damage. Motor stator incorporates shutdown temperature control sensors which automatically detect excessive motor temperatures and shut motor down to prevent damage.
• Worldwide backup and service.

FAQ
Q: What kind of company you are?
A: Shijiazhuang DEPUMP Pump Company is professional manufacturer in pumps. After accumulation and development of many years, we have formed a complete system of pump design, selection, application, manufacture, marketing and maintenance. We have passed CE, SGS certificate. Our customers are at home and abroad. Hope to coorperate with the worldwide friends.

Q: What's your MOQ?
A: Trial sample order is OK.

Q: What are your payment terms?
A: T/T, L/C, D/P, D/A or as customer required

Q: How about the warranty?
A: One year warranty for pumps, it depends on other pump working condition details.

Q: What is the delivery time?
A: 7-30 days according to customer quantities.

Q: Can you do OEM brand?
A: Yes, Welcome.

Q: What information should I offer to get pump solution?
1, Head: m
2, Flow: m3/h
3, Max Solid size: mm
4, Particle shape (smooth or sharp):
5, Medium pH level:
6,Specific Gravity of the Medium:
7, Temperature:
8, Drive type:
9, Power supply: Electric or Dlesel
10, Voltage and Frequency of the Motor:
