ISG Vertical Inline Centrifugal Pump
Product Details
The ISG Vertical Inline Centrifugal Pump is a vertically installed single-stage single-suction centrifugal pump. The pump adopts the performance parameters of the IS type centrifugal pump and is designed in combination with the general vertical pump.
Main purpose
The ISG Vertical Inline Centrifugal Pump can be used to transport clean water and other liquids similar to clean water. It is usually used for industrial and urban drainage, pressurized water supply in high-rise buildings, as well as some fire pressurization, long-distance water delivery, etc. It can also be equipped with water circulation pressurization equipment.
Working conditions
The maximum working pressure available for the pump is 1.6Mpa, and the operating temperature needs to be less than 80°C. If it exceeds 80℃, you need to choose other vertical pipeline pumps.
Model meaning
ISG 100-160 (I) A
ISG - ISG Vertical Inline Centrifugal Pump
100 - Pump inlet and outlet diameter
160 - Impeller nominal outer diameter
(I) - Traffic classification (I means larger traffic; no I means smaller traffic)
A - Impeller cutting gear (A is primary cutting, B is secondary cutting)

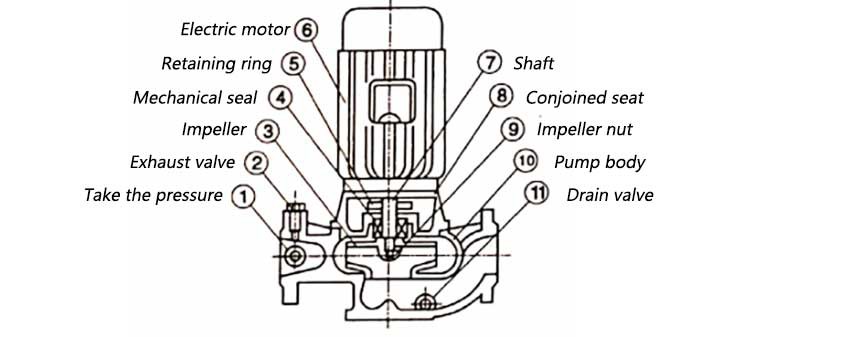

Structural description
ISG type structure description
1. The pump and motor have the same end cover, with shortened axial dimensions and simple structure.
2. The pump body is equipped with pressure holes and water discharge holes.
3. The pump body is equipped with an exhaust valve, which can discharge the air in the pump before work.
4. The bottom of the pump body is equipped with a mounting base plate and bolt holes to ensure that the overall The unit is installed securely.
In general, ISG Vertical Inline Centrifugal Pump has a compact structure and is easy to install. Whether it is pressurized water supply for high-rise residential areas, factory drainage, firefighting water delivery, or even long-distance water transportation, it can come in handy.
