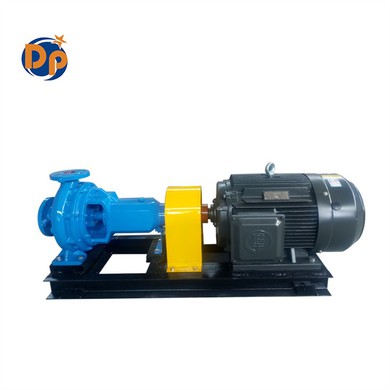

ISO 2858 5199 Standard End Suction High Pressure Water Pump

The ISO range has been designed to international standard ISO2858/5199 ensuring a sturdy & reliable, long lasting, high performing product that consumers have come to depend on from Davey.

Product Details

HEAVY DUTY CENTRIFUGAL END SUCTION PUMPS.

Design Features

ISO design is in accordance with international standards of ISO2858/5199, which means ISO Series pumps are interchangeable with other similar pumps, conforming to the same standards. This ensures a robust, long lasting, high performing product consumers have come to depend on from Preeminence .

Cast iron wear rings - fitted as standard, replaceable front & rear wear rings with optional materials, for a trouble-free lifecycle.
SS304 impeller - in a closed design is fitted as standard to prevent corrosion in stationary or inactive situations. 316SS or Cast iron are available on request. The use of 3-D solid model (CAD) Computer Aided Design and (CFD) Computational Fluid Dynamics ensures high efficiencies, reducing overall running costs. Impeller diameters can be trimmed to suit specified performance. PISO impellers are be balanced, providing smooth, vibration free operation, preventing premature bearing failure.
Pump casing - highly efficient cast iron volute casings, Flange dimensions and drilling according to AS/NZS 4331.2 ISO 7005.2 - 16 bar (EN) and DIN 2533/16 Bar. AS2129, Table E available on request
Casing o-ring - re-usable o-rings in Nitrile for ease of re-assembly (optional materials available).
Shaft seal - single, high quality mechanical seal with carbon vs ceramic fitted as standard to all PISO Series pumps with other options such as Silicone vs Silicone or high temp also available.
Tappings - convenient suction & discharge pressure gauge tappings plus volute drain, fitted as standard to all ISO Series pumps.
Back pull-out design - allowing for easy removal of rotating element without disturbing the pipework, lagging or pump volute casing. This is proven to reduce downtime whilst performing routine maintenance.
Enlarged shaft - reduces shaft deflection. Standard in 420SS ,304SS or 316SS as an option. Tapered & keyed shaft design allowing ease of removal in maintenance & positive locking whilst in operation.
Bearings - Heavy duty Japanese NTN brand , greased for life, reducing maintenance. Protected by a quality manufactured lip seal reducing ingress of moisture or foreign matter. Housed within removable bearing cap cover assembly.
Bearing housing - Robust / heavy duty, manufactured in high strength cast iron providing trouble-free life cycle.

Operating Conditions(50Hz)
