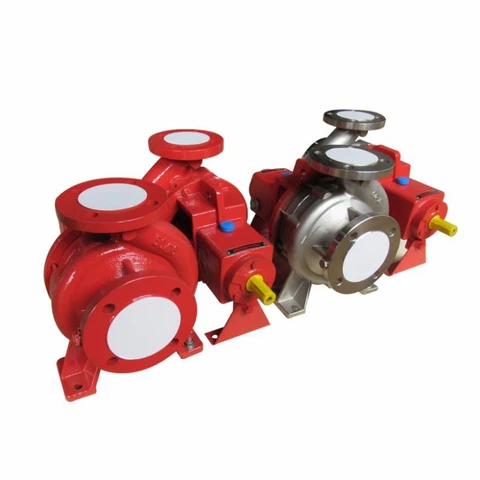

Horizontal End Suction Centrifugal Clear Water Pump High Head For Coal Mine ISA65/20

The Depump IS \ ISR type single-stage end-suction centrifugal pump is an energy-saving pump designed by teamwork in the whole nation. This pmup is suitable for industrial and city water supply ,water drainage, and widely used for agricultural irrigation, transportation pure water or other liquids while physical and chemical nature is similar to pure water, and the temperature should not be higher than 80 ℃.

Product Details

ISA65/20
Parameters:	Model:	ISA65/20
	Flow:	110 m3/h
	Head:	56.5 m
	Speed:	1450rpm
	Inlet:	80 mm
	Outlet:	65 mm
	NPSHr:	3.7m
	Efficiency:	73.3 %
	Shaft power:	23.08 kw
Material	Pump casing:	Cast iron
	Pump impeller:	Brass
	Shaft:	2Cr13
	Shaft seal:	Mechanical seal
	Shaft sleeve:	Carbon steel

ISA65-20 尺寸
