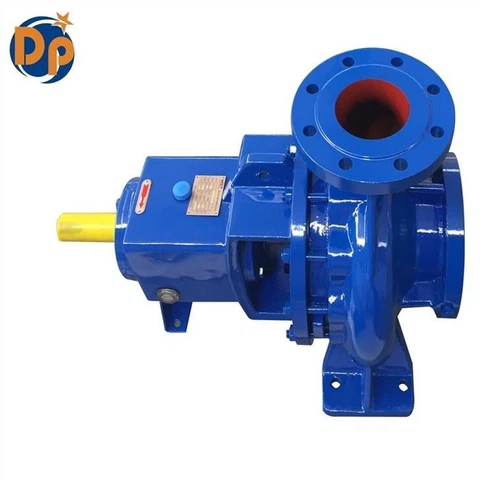

Best Electric Drive Ultraflow Water Pump

Electric Drive Ultraflow Water Pump is used to transport clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water delivery, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC and refrigeration Circulating pressurization of cold and warm water for circulation, bathroom, etc. and supporting equipment, the use temperature ≤80℃. Now we are going through about the model ISA.

Product Details

water pump (9)

water pump (2)

water pump (3)

water pump (4)

Working conditions of Electric Drive Ultraflow Water Pump:

1. Suction pressure ≤ 1.6 MPa, or the highest working pressure of the pump system ≤ 1.6 MPa, that is, pump suction inlet pressure + pump head ≤ 1.6 MPa, pump static pressure test pressure is 2.5 MPa, please specify the system work when ordering pressure.

When the working pressure of the pump system is greater than 1.6 MPa, it should be stated separately when ordering, so that the flow-through part and the connection part of the pump are made of cast steel during manufacturing.

2. Ambient temperature <40℃, relative humidity <95%.

3. The volume content of solid particles in the conveyed medium does not exceed 0.1% of the unit volume, and the particle size is less than 0.2mm.

Note: If the medium used is with fine particles, please specify when ordering so that the manufacturer can use wear-resistant mechanical seals.

Features of Electric Drive Ultraflow Water Pump:

1. Smooth operation: The absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation without vibration.

2. No leakage of dripping water: Carbide seals of different materials ensure that there is no leakage when conveying different media.

3. Low noise: The water pump supported by two low-noise bearings runs smoothly and is basically no noise except for the weak sound of the motor.

4. Low failure rate: The structure is simple and reasonable, and the key parts are of world-class quality; the complete machine's trouble-free working time is greatly improved.

5. Convenient maintenance: replacement of seals and bearings is simple and convenient.

6. More space-saving: the outlet can be left, right, and up in three directions, which is convenient for pipeline layout and installation and saves space.

Want to get to know more about Electric Drive Ultraflow Water Pump, please feel free to contact with us!
