Vertical Spindle Slurry Pump, Dewatering Sump Pump
Product Details
Vertical Spindle Slurry Pump, Dewatering Sump Pump
Basic Info
Model NO.: 65QV-SP, 65QV-SPR
Working Pressure: High Pressure Pump
Position of Pump Shaft: Vertical Pump
Mounting Height: Since Irrigation Centrifugal Pumps
Usage: Pump
Wet Parts: High Chrome Alloy
Export Markets: Global
Specification: CE, ISO, SGS
HS Code: 841370
Impeller Number: Single-Stage Pump
Influent Type of Impeller: Single Suction Pump
Pump Casing Combined: Verticaljoint Surface Pump
Impeller: Semi-Open
Pump Type: Vertical Slurry Pump
OEM: Available
Trademark: DE PUMP
Origin: China
Product Description
SP (R) Series Introduction:
SP(R) series is vertical centrifugal sump slurry pumps, which is designed to be immersed in liquid for conveying abrasive, coarse particles, dirty water and particle contaminated water.
Features:1. Metal or rubber lined wet parts
2. Double suction semi-open impeller
3. Agitator option keeps solids in suspension
4. Recessed impeller option passes over-sized material
Specification:
D: 40-200 mm
Q: 17-891m3/h
H: 4-37 m
Pump Structure:

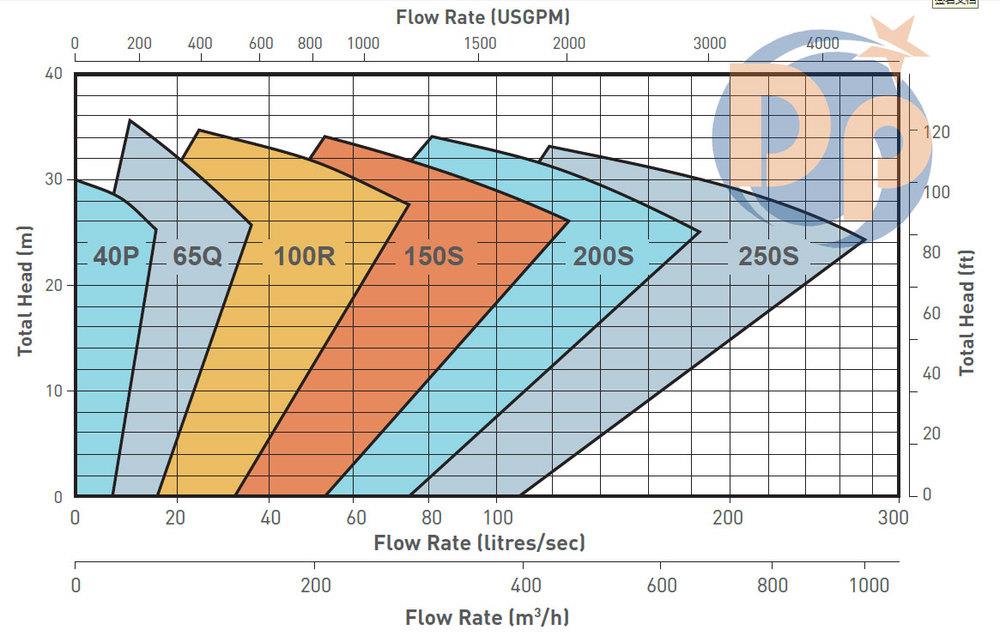

Performance Sheet:
| Pump Model | Allowable Max. Power | Clear Water Performance | |||||
| Capacity Q | Head H(m) | Speed n(r/min) | Max.Eff. η% | Impeller Dia. | |||
| m3/h | l/s | ||||||
| 40PV-SP(R) | 15 | 17-43.2 | 4.7-12 | 4-28.5 | 1000-2200 | 40 | 188 |
| 65QV-SP(R) | 30 | 18-114 | 5-32 | 5-31.5 | 750-1500 | 60 | 280 |
| 100RV-SP(R) | 75 | 54-289 | 15-80 | 5-36 | 500-1200 | 62 | 370 |
| 150SV-SP(R) | 110 | 108-479 | 30-133 | 8.5-40 | 500-1000 | 52 | 450 |
| 200SV-SP(R) | 110 | 189-891 | 52.5-247.5 | 6.5-37 | 400-850 | 64 | 520 |
| 250TV-SP(R) | 200 | 360-1152 | 100-320 | 7-33 | 400-750 | 60 | 575 |
| 300TV-SP(R) | 200 | 540-1548 | 150-430 | 5.5-26 | 350-700 | 60 | 580 |
Application:
SP(R) slurry pumps are mainly used for handing corrosive, coarse particles and high density slurries , and are widely used in sewage treatment, metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material...etc. various industrial sites. For different duties, pump is named as High head pump, High pressure pump, Mineral processing pump, Mill discharge slurry Pump, Booster pump, Feeding pump, Tailing pump,Transfer pump Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump
