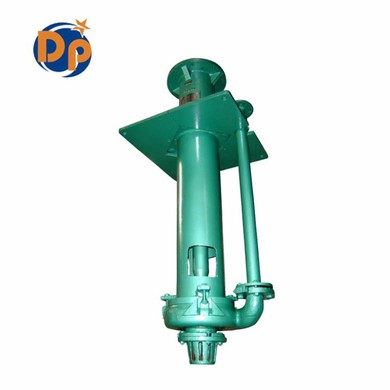

High Chromium Single Stage Pump Vertical Submerged Slurry Pump China Manufucture

Features Flow passage components: this type of pump use wear resistant metal, impeller choose wear resistant metal or rubber. Bearing components: we use grease lubrication. According to slag slurry pool liquid height, can choose different lengths of pump shaft or suction pipe. Sealing:...

SP vertical slurry pump

Product Details

Features

Flow passage components: this type of pump use wear resistant metal, impeller choose wear resistant metal or rubber.
Bearing components: we use grease lubrication. According to slag slurry pool liquid height, can choose different lengths of pump shaft or suction pipe.
Sealing: Doesn't need any shaft seal or shaft seal water. In suction volume insufficient condition also can work normally below.

Performance Table

Model	Max. Power (kw)	Material	Flow(L/S)	Head(m)	Speed(r/min)	Max. efficiency	No. of Vanes	Impeller Diameter (mm)	Weight(kg)
MSP
40PV	15	Cr27	5-12	4-28	1000-2200	40	5	188	285
65QV	30		6-24	5-31	700-1500	58	5	280	430
100RV	75		15-80	5-35	500-1200	56	5	370	860
150SV	110		30-130	8-40	500-1000	52	5	450	1700
MSPR
40PV	15	Rubber	5-11	4-26	1000-2200	40	5	188	280
65QV	30		6-29	5-30	700-1500	51	5	280	420
100RV	75		18-80	5-35	600-1200	62	5	370	840
150SV	110		30-130	8-40	500-1000	52	5	450	1700
