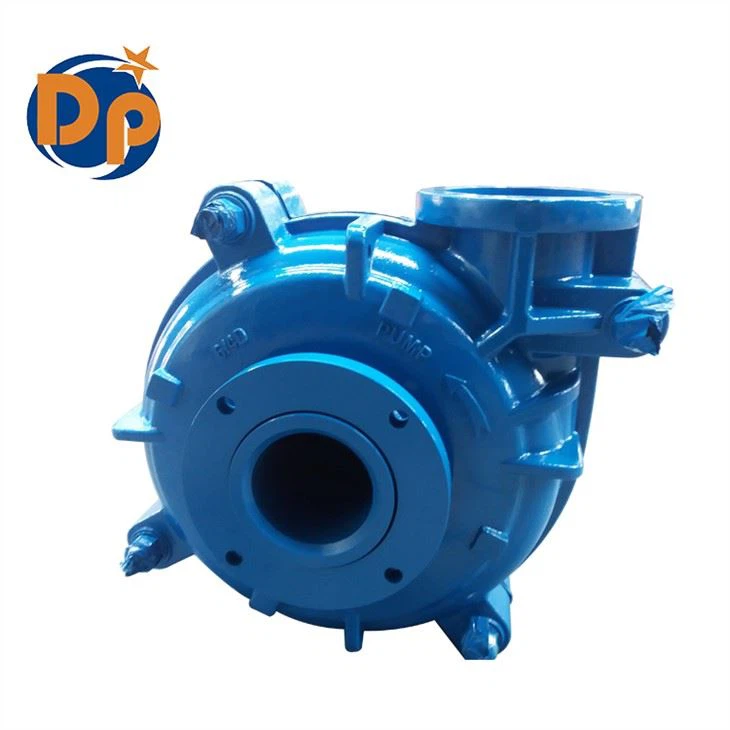

Heavy Pump

Heavy pump is a pump specially used to transport liquids containing solid particles (such as ore slurry, mud, coal slurry, etc.). Due to its wear-resistant and corrosion-resistant characteristics, it plays an irreplaceable role in various heavy industrial scenarios.

The main application areas of heavy pump are mining, metallurgical industry, coal industry, power industry, environmental protection and sewage treatment, construction and foundation engineering, chemical industry, marine engineering, etc.

Main performance range of the heavy pump
Flow rate: 10~5000m³/h
Head: 1~70m
Pump inlet and outlet diameter: 1~18inch
Working temperature: 1°C ~ 80°C
Solid particles: 0~90mm

Heavy pump model description
Example: 4×3C-MAH (r)
4: Inlet diameter (inch)
3: Outlet diameter (inch)
C: Bracket code (A, B, C, D...)
MAH: wet ends metal material
MAHr: wet ends rubber material
MHH: wet ends metal material and high head

Pump structure

Heavy pumps are 100% fully interchangeable with the most common slurry pump design in the mining industry.
