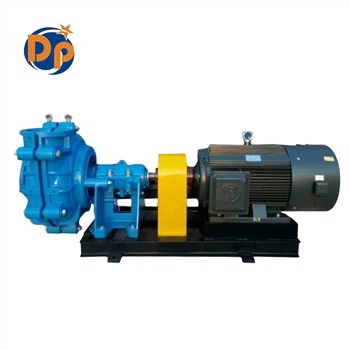

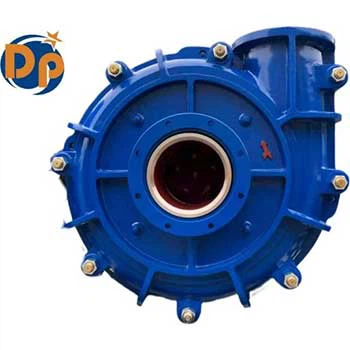

High Chrome Wear Resistant Slurry Pump
Product Details
Core material
High chrome Wear resistant slurry pump's Flow passage components like the pump body, impeller and volute liner are all made of high-chromium material. This material has high hardness and good toughness, with much better abrasive wear resistance than ordinary cast iron or carbon steel.
For slurries containing large particles of sand and slag, it can effectively reduce component wear rate. Compared with conventional slurry pumps, its service life is extended by 3–5 times, greatly cutting down the frequency of shutdown maintenance and operation costs.
Structural design features
1.High-efficiency
High chrome Wear resistant slurry pump's impeller is designed with a large flow area. It optimizes the flow path of slurry, reduces the risk of medium impact and blockage inside the pump, and is suitable for conveying slag slurry with a concentration of ≤60%. It also improves efficiency.
2.Resistant Design
The impeller inlet adopts a streamlined chamfer design. It enhances cavitation resistance, reduces damage to flow passage components caused by cavitation, and ensures stable pump operation under low net positive suction head conditions.
3.Shaft sealing systems
Packing seals are low-cost but require regular maintenance.
Mechanical seals have a long service life and work well with high-pressure or corrosive media.
Impeller seals rely on centrifugal force to form a seal.
Typical Application Scenarios
1.Mining industry: Mine filling slurry conveying, tailings discharge, slag slurry transfer
2.Metallurgical industry: Smelting waste slurry conveying, hydrometallurgy slurry circulation
3.Coal industry: Coal washery sludge conveying, gangue slurry treatment
4.Environmental protection and infrastructure: River dredging slurry conveying, aggregate production line slurry circulation
Welcome to contact with us for more information about High chrome Wear resistant slurry pump.
