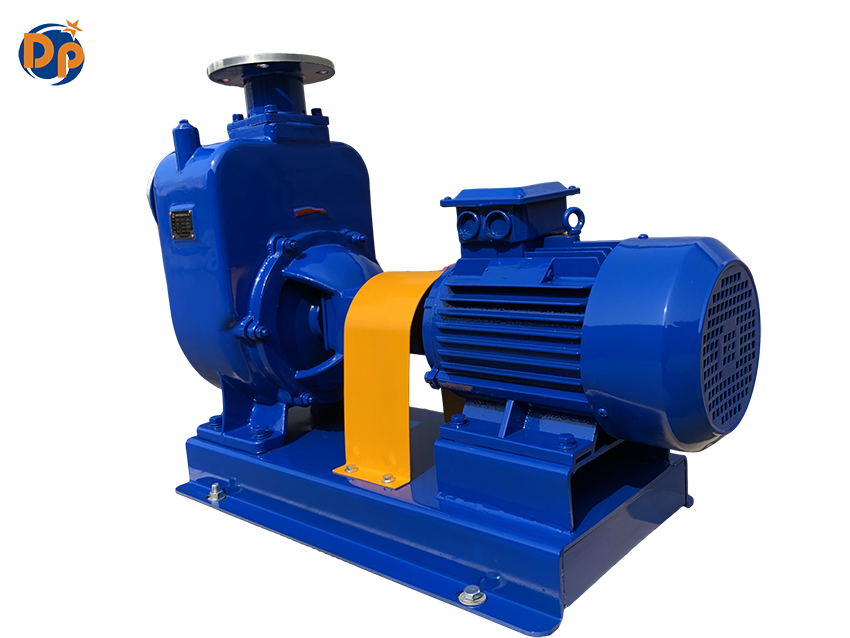

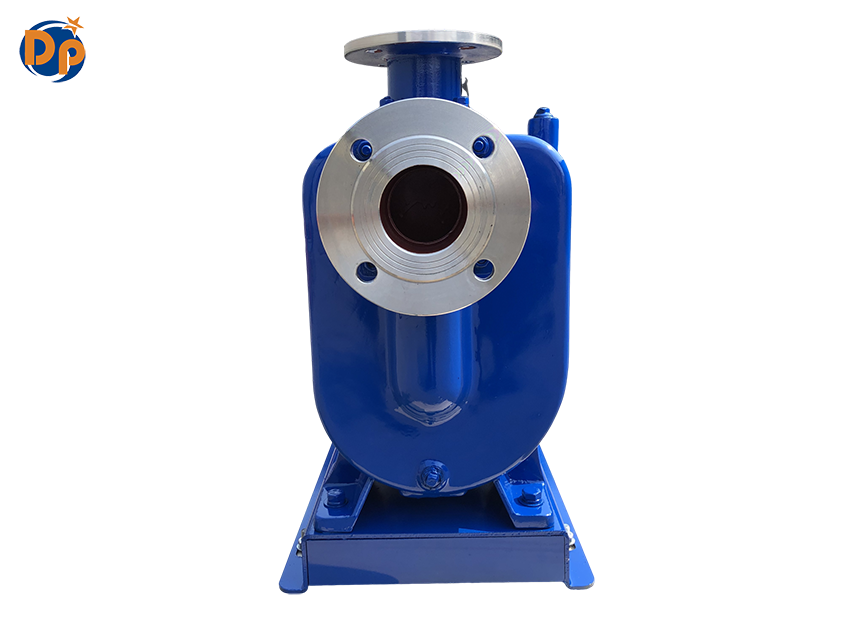

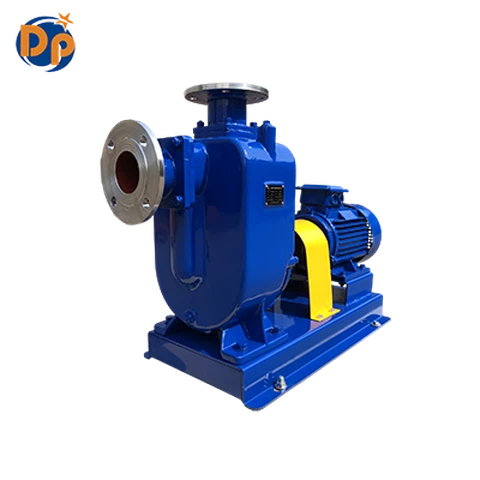

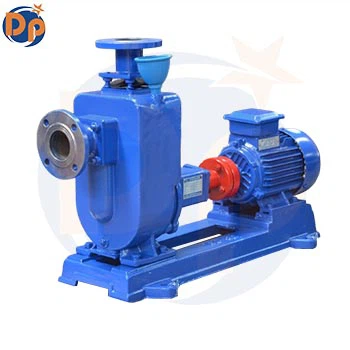

ZW Series Self Priming Non Clogging Sewage Pump
Product Details
DEPUMP ZW series self priming non clogging sewage pump combines self-priming capability with non-clogging solids handling in a single unit. No foot valve required and no priming water needed at startup.
Compared with conventional self-priming clean-water pumps, the ZW series not only handles clean water but also directly transfers wastewater containing large solid particles and long fibrous impurities.
Core Advantages
No foot valve, no priming water, ready to run
Self-priming height up to 4.5 to 5.5 meters, suction pipe length up to 10 meters. On-site installation requires no foot valve and no manual water filling, significantly reducing operational complexity and maintenance workload.
Strong solids-handling capability, no clogging
Suspended particle diameter up to 60 percent of the pump aperture; long fiber length up to 5 times the pump aperture. Ideal for fibrous, pulpy, mixed and suspended media.
Parameter
| Rated flow | 5 to 800 m³/h |
| Rated head | 8 to 60 m |
| Self-priming height | 4.5 to 5.5 meters |
| Media temperature | up to 80 degrees Celsius (up to 200 degrees Celsius on request) |
| Media specific gravity | up to 1240 kg per cubic meter |
Model Number
Taking the model ZW 50-15-30 P B as an example:
ZW:ZW series self priming non clogging sewage pump
50: inlet diameter in millimeters
15: rated flow in m³/h
30: rated head in m
P: explosion-proof motor (standard motor if omitted)
B: stainless steel material (cast iron if omitted)
Applications
The ZW series self priming non clogging sewage pump is widely used in the following fields: Municipal projects, River and aquaculture, Light industry and textile, Paper-making, Food processing, Chemical industry, Power industry, etc. It is the ideal impurity pump for conveying fibrous, pulpy, mixed and suspended chemical media.
Why Choose DEPUMP?
DEPUMP specializes in the R&D and mass production of various pumps-including centrifugal, double-suction, sewage, chemical, and self-priming models-optimizing impeller and pump casing flow-path structures in strict accordance with international hydraulic model standards.
1. Strict Raw Material Selection: Casings of ZW series self priming non-clog sewage pumps are precision cast from ductile iron, 304 or 316 stainless steel. Wear and corrosion resistant matching parts are adopted for shaft sleeves and mechanical seals. The pumps fit multiple conveying media including clean water, silt-containing sewage and weakly acidic & alkaline chemical liquids, effectively prolonging service life.
2. Standardized Assembly Line Production: Each pump will complete full-load pressure testing after assembly to eliminate leakage, excessive vibration and abnormal noise before delivery. Complete supporting documents including product qualification certificate, specification nameplate and operation & maintenance manual will be delivered with every pump3. Comprehensive Service: We provide full pre-sales model selection support and long-term global after-sales assurance, welcoming on-site factory inspections and providing complete qualification documentation.
If you are looking for a stable and durable ZW series self priming non clogging sewage pump, contact us today for selection assistance, technical data and quotation.
