Single Stage Split Casing Double Suction Pump

As an important form of centrifugal pump, double suction pump is widely used in engineering because of its high lift and large flow.

Product Details

Single stage split casing double suction pump

split casingpump

As an important form of centrifugal pump, double suction pump is widely used in engineering because of its high lift and large flow. The impeller of this type of pump is actually composed of two back-to-back impellers, and the water flowing out of the impeller flows into a volute. The double suction pump has the following characteristics: it is equivalent to two single suction impellers with the same diameter working at the same time, and the flow can be doubled under the same impeller outer diameter; the pump shell is horizontally opened in the middle, which is convenient for inspection and maintenance; at the same time, the inlet and outlet of the double suction pump are in the same direction and perpendicular to the pump shaft, which is conducive to the arrangement and installation of the pump and the inlet and outlet pipes; the impeller structure of the double suction pump is symmetrical, without axial direction Force, smooth operation.

Pump specification

Flow: 630м3/hr

Head: 90m

Pump type: 300MS-90

Material of impeller and body - cast iron

Seal - double shaft seal

Only pump without anything coupling, etc.

Inlet pressure - 0.7 kgf/cm2;

Outlet - 13 kgf/cm2;

Cavitation margin (max) - 5.70 m;

Pumped medium - formation water;

Solid content: Volume concentration - 0.0221%;

Particle size (abrasive/non-abrasive) more than 0.2 mm

Operating temperature - 50 C;

Viscosity (kinematic) at tp - up to 60;

Density at tp - 1.081 kg/m3

Network frequency - 50Hz;

Eff.: 73%

NPSH: 5.2m

Power: 280KW

Speed: 1480rpm

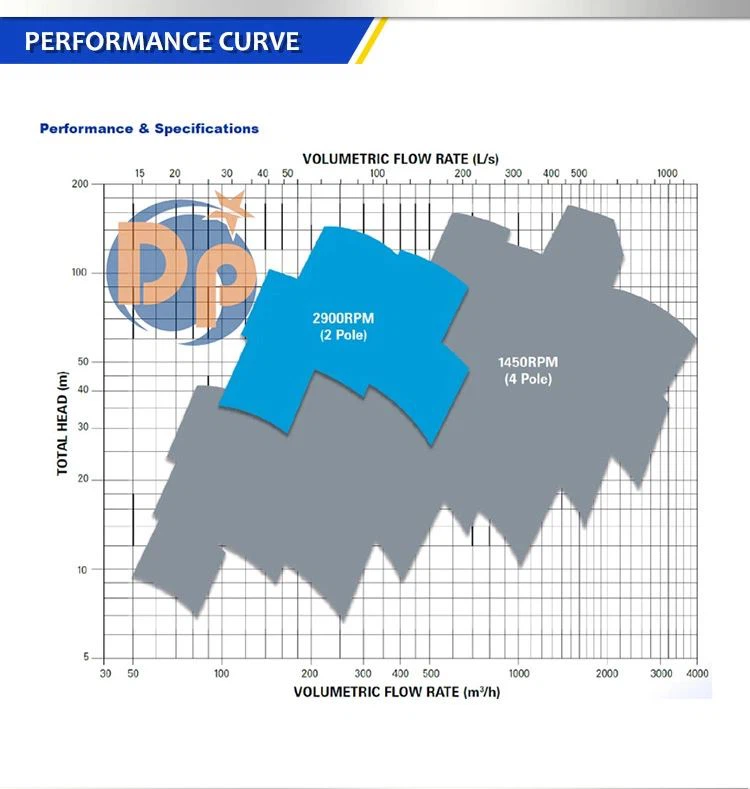

Pump performance

Model	Inlet/Outlet (mm)	Capacity m³/h	Head (m)	Speed (rpm)	Shaft power(kw)
150S-78	150/150	160	78	2900	45
150S-50	150/150	160	50	2900	27.3
200S-95	200/200	280	95	2900	94
200S-63	200/200	280	63	2900	59.3
200S-42	200/200	280	42	2900	37.7
250S-65	250/250	485	65	1450	108.7
250S-39	250/250	485	39	1450	62.1
250S-24	250/250	485	24	1450	36.9
250S-14	250/250	485	14	1450	21.7
300S-90	300/300	790	90	1450	249.8
300S-58	300/300	790	58	1450	148.5
300S-32	300/300	790	32	1450	79
300S-19	300/300	790	19	1450	46.9
300S-12	300/300	790	12	1450	31.1
350S-125	350/350	1260	125	1450	531
350S-75	350/350	1260	75	1450	304
350S-44	350/350	1260	44	1450	177.6
350S-26	350/350	1260	26	1450	101.5
350S-16	350/350	1260	16	1450	63.8
500S-13	500/500	2020	13	980	86.2
500S-35	500/500	2020	35	980	219
500S-98	500/500	2020	98	980	678
600S22	600/600	3241	22	980	231.8
600S75	600/600	3060	75	980	694.4
800S32	800/800	5500	32	730	538.5
800S47	800/800	5500	47	730	782.2
