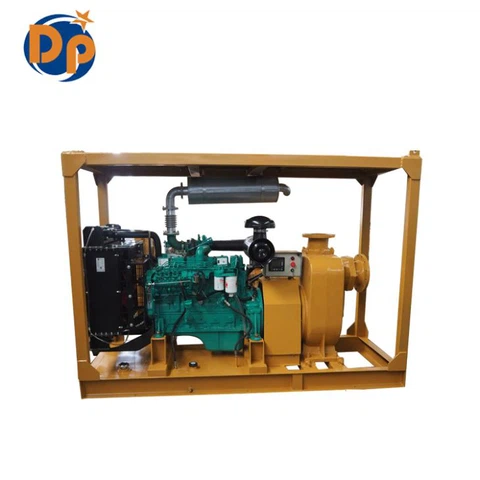

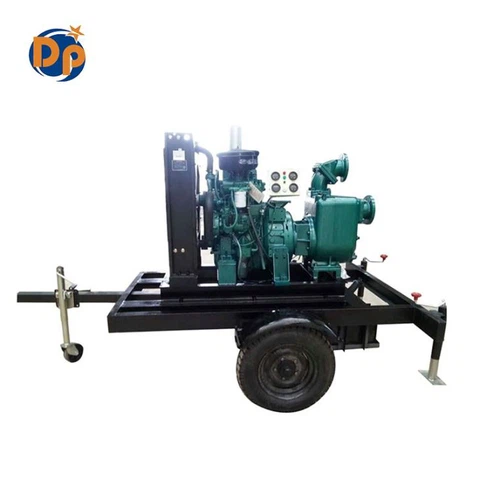

Diesel Engine Self Priming Centrifugal Pump

Pump parameters：

Model: P4

Manufacturer: De-Pump Company

Inlet/Outlet: 100/100mm

Connection Type: Flange

Inlet Direction: Horizontal

Outlet Direction: Vertical

Rated Capacity:100m3/h

Rated Head:  25m

Rated Speed: 1800rpm

Shaft Power：18kw

Diesel Engine Power: 27kw

Pump Type: Single Stage, End Suction, Horizontal, Centrifugal,Self-Priming

Altitude Request: ≤1000m

Shaft Seal:Mechanical Seal

Impeller Type: Semi Open Type

Pump Casing Material: Cast Iron

Impeller Material: Ductile iron

Pump Shaft: 40Cr

Pump Color: As your request

Control System: De-Pump Company

Package:Ply Wooden Case

Data Sheet of Diesel Engine

Model: YN25GB

Engine Supplier:  Domestic brand

Engine Type:Water cooling,in line,four-stroke,wet liner and direct injection

Circulation: 4 stroke

Air Intake: Naturally

Displacement: 2.5L

Engine Speed: 1800rpm

Engine Rated: 27kw

Cylinderx Stroke: 90*100mm

Compression ratio: 18:01

Fuel consumption rate:≦227 g/kW.h

Steady speed adjusting rario at rated condition:≤5%

Oil pressure:≥0.10Mpa

Oil consumption rate:2.72 g/kW.h

Starting method :Electric motor start

Lubricating method:Pressure lubrication

Oil sump capacity:7L

Overall dimension:780*550*700
