Multistage Hot Water Boiler Feed Water Pumps

A Boiler Feed Water Pump is a specific type of pump used to pump feed water into a steam boiler. Our High Pressure Boiler Pumps are high pressure units that take suction from a condensate return system and can be of the centrifugal pump type or positive displacement type.

Product Details

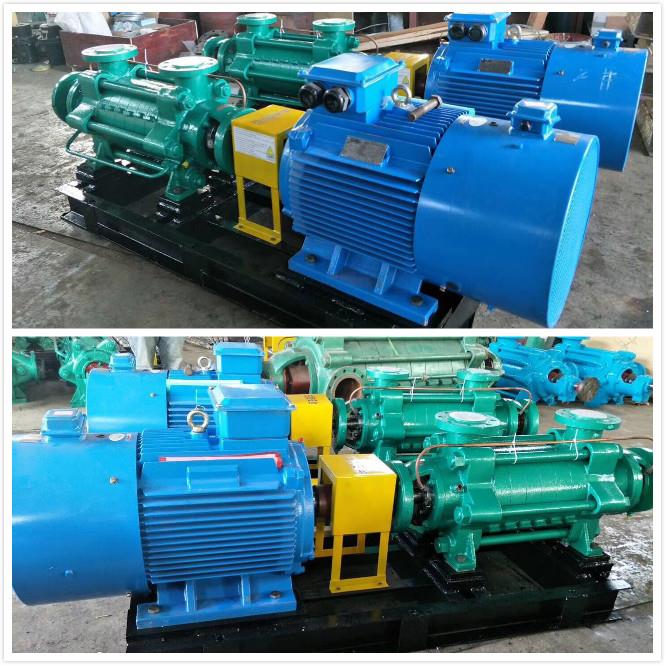

Multistage Hot Water Boiler Feed Water Pumps

The DG series commercial and industrial hot water boiler feed pump is a horizontal multistage centrifugal pump, suitable for transporting pure water and other liquids whose physical and chemical properties are similar to pure water. Meanwhile, it is also applicable to water supply for small boilers or transporting hot water-like media, with a maximum temperature of up to 150℃.

Applications of Hot Water Boiler Pumps

Long-range water conveyance
Supply and transfer of boiling water
Pressure boosting in water systems
Agricultural irrigation operations
Water supply for mining activities
Fire-fighting systems
Offshore engineering projects

Features of Hot Water Boiler Pumps

Flat-topped efficiency curve: minimal fluctuations in efficiency across the entire operating spectrum.
Efficiency levels on par with international standards.
Versatile design allows direct operation or pulley-driven setup with engines/motors.
Engineered to prevent overloading of connected engines or motors.
Built-in automatic air release functionality during priming.
Dynamically balanced rotating components ensure ultra-low vibration levels.
Replaceable wear parts extend overall service life.
Simple maintenance procedures and readily available spare parts.

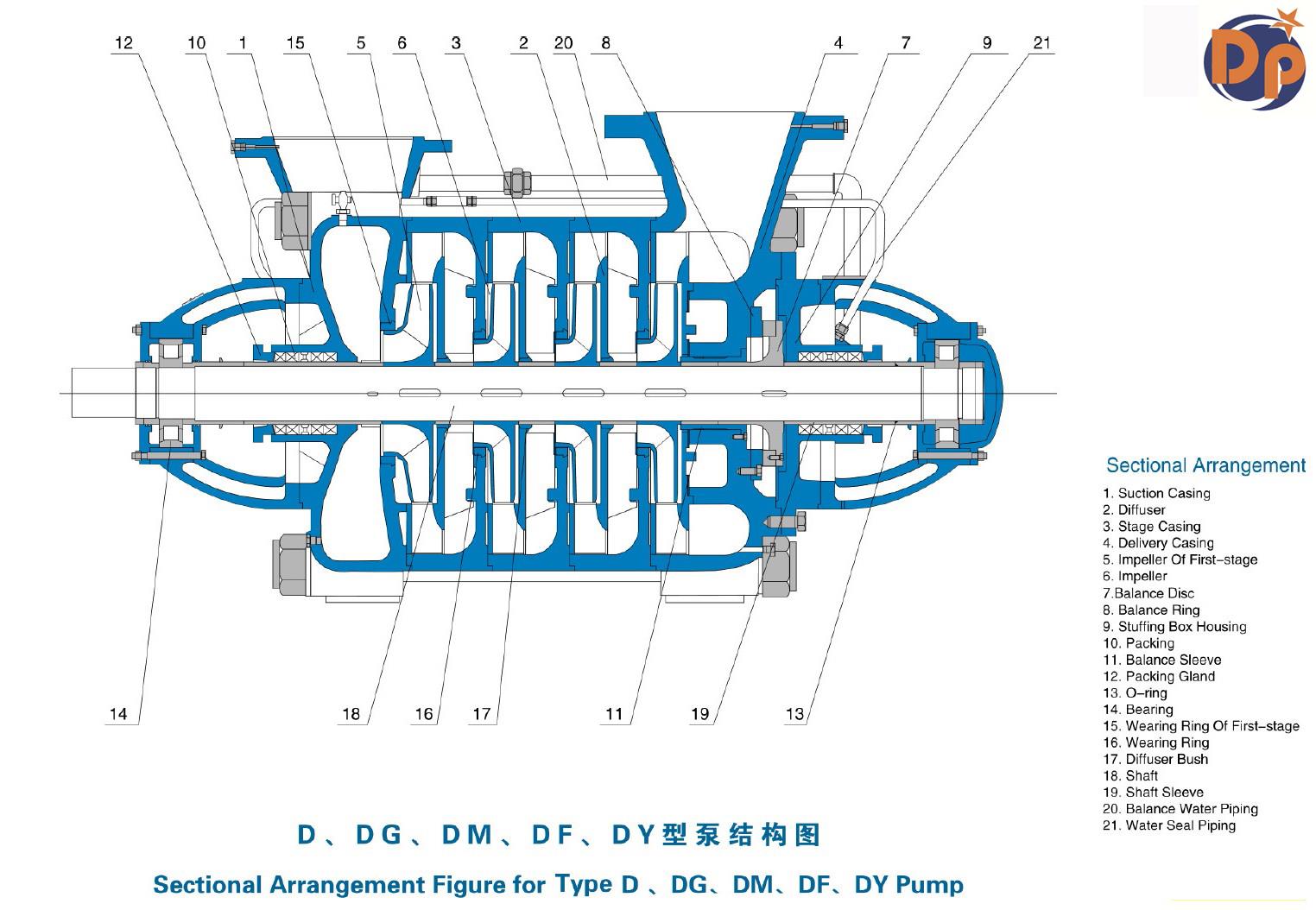

Structure of Hot Water Boiler Pump

multistage hot water pump.jpg

Hot Water Boiler Pump Clean Water Performance

DG Boiler Pump Clear Water Performance
Tpye	Series	Flow	Head	Speed	Eff	NPSHr	Motor Power
Tpye	Series	m3/h	m	r/min	%	m	kw
DG25-80	6	17.4	506	2950	41.4	3.1	90
		25	476		48	3.3
		29.1	454		51.8	3.8
	12	17.4	1013	2950	41.4	3.1	160
		25	954		48	3.3
		29.1	908		51.8	3.8
DG45-80	6	36	502	2950	50	3.9	160
		45	480		55	4.0
		62	409		56	5.5
	12	36	1003.6	2950	50	3.9	280
		45	960		55	4.0
		62	818.2		56	5.5
DG85-80	7	54	616	2950	53	3.5	250
		85	560		65	4.5
		108	490		66	5.3
	12	54	1056	2950	53	3.5	450
		85	960		65	4.5
		108	840		66	5.3
DG150-100	6	120	630	2950	67	3.4	400
		150	591		70	4.8
		180	540		72	5.5
	10	120	1050	2950	67	3.4	710
		150	985		70	4.8
		180	900		72	5.5
