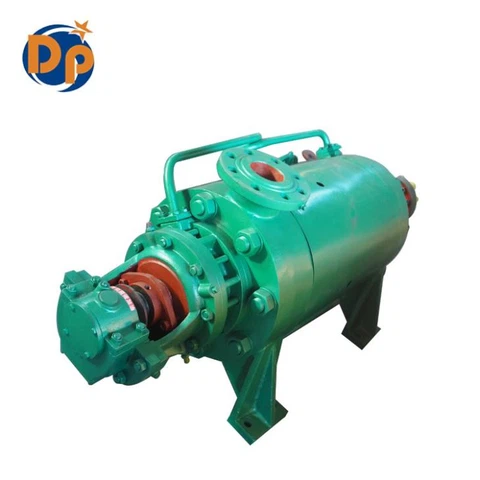

High Pressure Multistage Hot Water Circulation Pump

Features Cast iron, duct alloy, carbon steel, zinc free bronze, silicon brass or stainless steel construction (other materials available on request) High efficiency double suction impeller Durable, low noise, long life bearing Premium quality mechanical seal Electric or diesel drive Application...

Product Details

多级泵详情营销图-新

Features

Cast iron, duct alloy, carbon steel, zinc free bronze, silicon brass or stainless steel construction (other materials available on request)
High efficiency double suction impeller
Durable, low noise, long life bearing
Premium quality mechanical seal
Electric or diesel drive

Application

Mines
Irrigation
Metallurgy
Urban water supply
Environmental protection

D25-80X9 High Head 720m Industrial Water Multistage Centrifugal Pump with 160kw Motor

Performance Table

Performance Data
Model	Capacity		Head m	Speed r/min	Motor Power (Kw)	Impeller Dia mm	Weight kg
Model	m3/h	L/S	Head m	Speed r/min	Motor Power (Kw)	Impeller Dia mm	Weight kg
D6-50x2	6.3	1.75	100	2950	11	198	140
D6-50x12	6.3	1.75	600	2950	55	198	340
D25-50x3	25	6.94	150	2950	30	196	220
D25-50x12	25	6.94	600	2950	110	196	409
D46-50x12	46	12.78	600	2950	160	210	475
D85-67x9	85	23.6	603	2950	250	235	1840
D120-50x2	120	33.3	100	2950	55	213	640
D120-50x9	120	33.3	450	2950	220	213	1200
D155-67x9	155	43.1	603	2950	450	235	1800
D360-40X10	360	100	400	1480	630	360	2550
D580-70X10	580	161.1	700	1480	1800	473	4120
D720-60x9	720	200	540	1480	1600	450	3900
