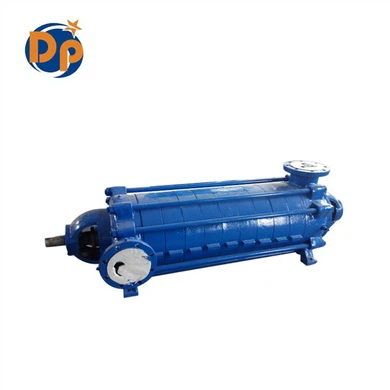

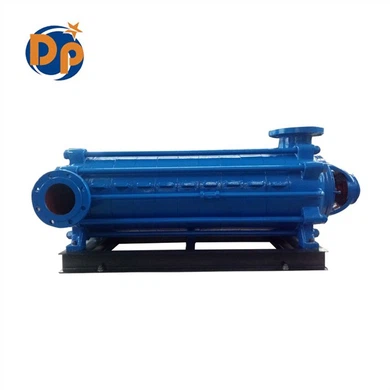

China Customized Multistage Pump

Name: China Customized Multistage Pump Manufacturers and Factory China - Price List - DEPUMP
Brand: DEPUMP
SKU: 166016932

Multistage pump, as the name suggests, is a pump composed of multiple impellers known for its high lift. Due to its high lift and pressure, it is often used as a lift pump. Its material can be divided into cast iron and cast steel according to different media. It is one of the common industrial pumps. Depump Technology provides Customized Multistage Pump.

Product Details

multistage pump (1)

Types of Multistage Pumps

Centrifugal multistage pumps can be divided into three categories, vertical multistage pumps, submersible multistage pumps, and horizontal multistage pumps. The horizontal multistage pump is divided into two categories according to different media temperature. This time we mainly introduce these two types of horizontal multistage pump. At the same time, we also provide horizontal customized multistage pump according to the specific needs of customers.

Type one: D Series Multistage Pump.

It is mainly used to transport clear water without solid particles or media with physical and chemical properties similar to clear water, and the medium temperature needs to be lower than 80 degrees Celsius.

The pump outlet is vertical and the pump inlet is horizontal.

Performance range

Q: 3.75-840m³/hr

H: 19-680meters

multistage pump (3)

Type two: DG Series Multistage Pump.

DG series multistage pumps are mainly used for conveying low temperature or high temperature medium without solid particles with a temperature between minus 20 degrees Celsius and 150 degrees Celsius. The medium may be clear water or a medium with physical and chemical properties similar to clear water. It is usually used as boiler water feed pump in the field of paper mill, power factory, etc.

The inlet and outlet of the pump are in the same horizontal direction.

Performance range

Q: 3.75-185m³/hr

H: 50-684meters (Medium and low pressure)

H: 409-1450meters (sub-high pressure)

multistage pump (2)

In addition to the D and DG series that can transport clean water, our multistage pumps also have the following pump types suitable for different media:

DF: can transport aggressive media

DY: Can transport oil or petroleum media

MD: can transport slurry containing particles

Also we accept customized multistage pump, just tell us the head, flow rate, voltage, we will send back the best solutions to you.
