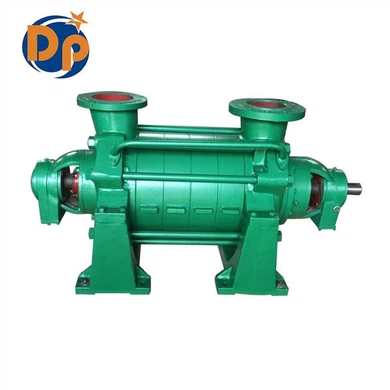

50bar Head High Pressure Water Pump

50bar Head High Pressure Water Pump

Structure description of DG multistage boiler feed water pump

This pump is a single shell segmental multistage centrifugal pump. The suction inlet and the discharge outlet are vertical upward. The front section, the middle section and the rear section are connected into a whole by a bar. The static joint surface between the sections is mainly sealed by the metal surface, and there is no O-ring as an auxiliary seal. The suction section, middle section and discharge section of DG high pressure pump are made of forgings.

Model description of DG multistage boiler feed pump

Example: DG25-50X10;

DG -- single suction multistage boiler feed water pump;

25 -- design point flow of pump;

50 -- single stage head of pump;

10 -- pump stage.

Material recommend

＜105℃, Cast iron + Packing seal

＜110℃, Cast iron + Machanical seal

＜115℃, Cast steel + Packing seal

＜160℃, Cast steel + Cartridge mechanical seal

Welcome to contact with us for more information
