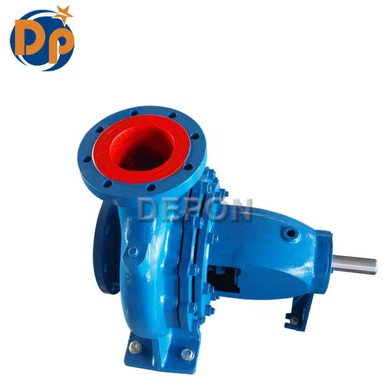

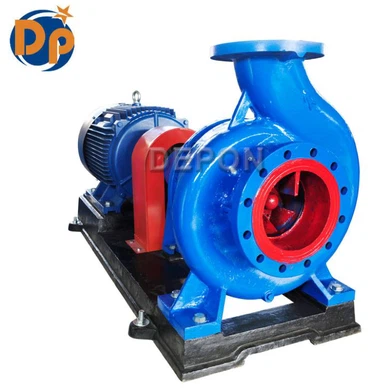

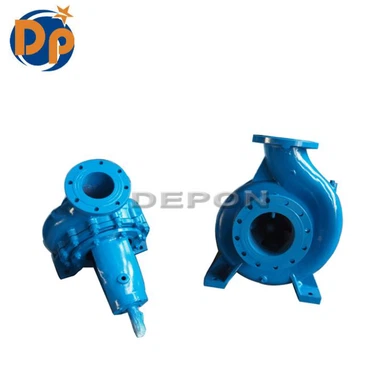

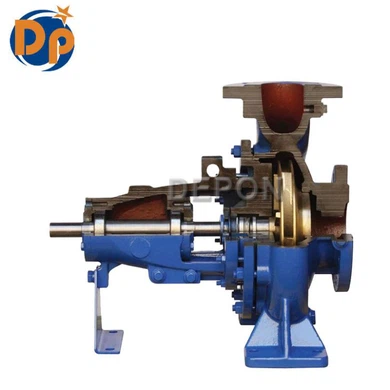

IS80-65-160 Circulation Water Pumps For Factory And Mining
Product Details
IS80-65-160 Circulation Water Pumps for Factory and Mining
Designed for heavy duty industrial use including belt drive applications:
General water transfer in processing plants, mines, construction sites and irrigation.
Performance & Specifications
Model | Capacity | Head （m） | Speed (r/min) | Power (kw) | Eff. (%) | (NPSH)r (m) | ||
(m³/h) | （L/s） | Shaft power | Motor power | |||||
IS80-65-160 | 30 | 8.33 | 36 |
2900 | 4.82 |
7.5 | 61 | 2.5 |
50 | 13.9 | 32 | 5.97 | 73 | 2.5 | |||
60 | 16.7 | 29 | 6.59 | 72 | 3.0 | |||
IS80-65-160A | 46.8 | 13 | 28 | 2900 | 5.1 | 5.5 | 70 | 2.5 |
IS80-65-160B | 43.3 | 12 | 24 | 2900 | 4.15 | 5.5 | 68 | 2.5 |
Features
● Heavy duty oil lubricated taper roller Bearings.
● Australian designed and manufactured.
● Superior hydraulic design and manufacturing methods produce significantly higher efficiencies for lower running costs and reduced Maintenance
●Heavy duty design type 316 shaft
●High strength cast iron bearing housing
●Mechanical seals fitted as standard with single on-shaft mechanical seal
●Superior hydraulic design and manufacturing processes, together with double curvature impeller blades, provide highly efficient suction performance, higher speed capabilities and greater performance for reduced running costs and maintenance.
●Taper mounted impeller for positive drive and easy removal
●Replaceable stainless steel or zinc free bronze wear rings
●Reusable “O” ring body seals in Vinton as standard and Teflon or EPDM as options
●AS2129 Flanges
●Standard tapings- Volute drain plug, suction flange tapping for suction gauge and discharge tapping for pressure gauge
