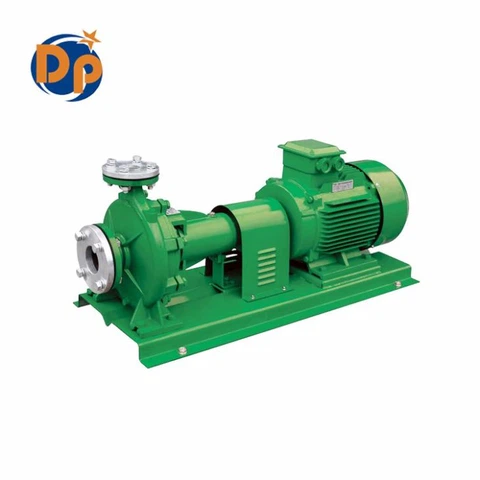

High Head Electric Split Case Water Pump Double Suction Single Stage Industrial Clean Water Pump
Product Details
Introduction:
DEPUMP IS serial centrifugal water pumps are single stage suction cantilever centrifugal pumps. They are used to deliver clean water and the liquids of which the physical and chemical properties are similar to clean water.
Application:
• Domestic water boosters
• Sprinkler/Firefighting
• Water treatment plants
• Seawater pumping
• Chemical / Processing
• Food processing
• Irrigation
• Designed for heavy duty
• industrial use including belt
• drive applications.
• General water transfer in processing plants, mines, construction sites and Irrigation.
Models & Performance
| Model | Flow | Lift head | Rotation speed | Motor power | Inlet Diameter | Outlet Diameter |
| (m3/h) | (m) | (r/min) | (kw) | (mm) | (mm) | |
| IS50-32-125 | 12.5 | 20 | 2900 | 2.2 | 50 | 32 |
| 6.3 | 5 | 1450 | 0.55 | 50 | 32 | |
| IS50-32-160 | 12.5 | 32 | 2900 | 3 | 50 | 32 |
| 6.3 | 8 | 1450 | 0.55 | 50 | 32 | |
| IS50-32-200 | 12.5 | 50 | 2900 | 5.5 | 50 | 32 |
| 6.3 | 12.5 | 1450 | 0.75 | 50 | 32 | |
| IS50-32-250 | 12.5 | 80 | 2900 | 11 | 50 | 32 |
| 6.3 | 20 | 1450 | 1.5 | 50 | 32 | |
| IS65-50-125 | 25 | 20 | 2900 | 3 | 65 | 50 |
| 12.5 | 5 | 1450 | 0.55 | 65 | 50 | |
| IS65-50-160 | 25 | 32 | 2900 | 5.5 | 65 | 50 |
| 12.5 | 8 | 1450 | 0.75 | 65 | 50 | |
| IS65-40-200 | 25 | 50 | 2900 | 7.5 | 65 | 40 |
| 12.5 | 12.5 | 1450 | 1.1 | 65 | 40 | |
| IS65-40-250 | 25 | 80 | 2900 | 15 | 65 | 40 |
| 12.5 | 20 | 1450 | 2.2 | 65 | 40 | |
| IS65-40-315 | 25 | 125 | 2900 | 30 | 65 | 40 |
| 12.5 | 32 | 1450 | 4 | 65 | 40 | |
| IS80-65-125 | 50 | 20 | 2900 | 5.5 | 80 | 65 |
| 25 | 5 | 1450 | 0.75 | 80 | 65 | |
| IS80-65-160 | 50 | 32 | 2900 | 7.5 | 80 | 65 |
| 25 | 8 | 1450 | 1.5 | 80 | 65 | |
| IS80-50-200 | 50 | 50 | 2900 | 15 | 80 | 50 |
| 25 | 12.5 | 1450 | 2.2 | 80 | 50 | |
| IS80-50-250 | 50 | 80 | 2900 | 22 | 80 | 50 |
| 25 | 20 | 1450 | 3 | 80 | 50 | |
| IS80-50-315 | 50 | 125 | 2900 | 37 | 80 | 50 |
| 25 | 32 | 1450 | 5.5 | 80 | 50 | |
| IS100-80-125 | 100 | 20 | 2900 | 11 | 100 | 80 |
| 50 | 5 | 1450 | 1.5 | 100 | 80 | |
| IS100-80-160 | 100 | 32 | 2900 | 15 | 100 | 80 |
| 50 | 8 | 1450 | 2.2 | 100 | 80 | |
| IS100-65-200 | 100 | 50 | 2900 | 22 | 100 | 65 |
| 50 | 12.5 | 1450 | 4 | 100 | 65 | |
| IS100-65-250 | 100 | 80 | 2900 | 37 | 100 | 65 |
| 50 | 20 | 1450 | 5.5 | 100 | 65 | |
| IS100-65-315 | 100 | 125 | 2900 | 75 | 100 | 65 |
| 50 | 32 | 1450 | 11 | 100 | 65 | |
| IS125-100-200 | 200 | 50 | 2900 | 45 | 125 | 100 |
| 100 | 12.5 | 1450 | 7.5 | 125 | 100 | |
| IS125-100-250 | 200 | 80 | 2900 | 75 | 125 | 100 |
| 100 | 20 | 1450 | 10 | 125 | 100 | |
| IS125-100-315 | 200 | 125 | 2900 | 110 | 125 | 100 |
| 100 | 32 | 1450 | 15 | 125 | 100 | |
| IS125-100-400 | 100 | 50 | 1450 | 30 | 125 | 100 |
| IS150-125-250 | 200 | 20 | 1450 | 18.5 | 150 | 125 |
| IS150-125-315 | 200 | 32 | 1450 | 30 | 150 | 125 |
| IS150-125-400 | 200 | 50 | 1450 | 45 | 150 | 125 |
| IS200-150-250 | 400 | 20 | 1450 | 37 | 200 | 150 |
| IS200-150-315 | 400 | 32 | 1450 | 55 | 200 | 150 |
| IS200-150-400 | 400 | 50 | 1450 | 90 | 200 | 150 |
