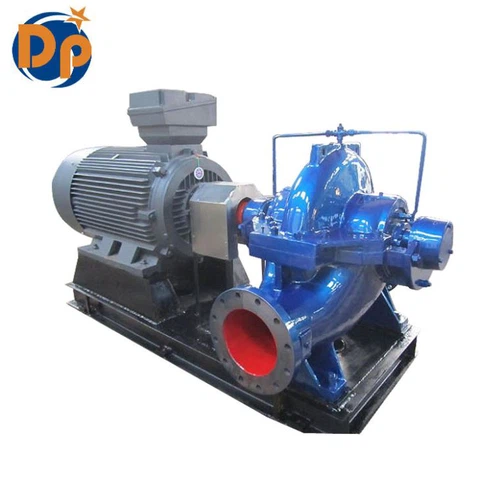

High Flow Double Suction Single Stage Water Pump

When your operation demands moving massive volumes of water—whether it’s supplying a city’s water grid, cooling a power plant, or irrigating thousands of acres—you need a pump that combines unmatched flow capacity with simple, reliable performance. Generic pumps often struggle with high flow: they overheat, lose efficiency, or require complex multi-pump setups to meet demand. But the High Flow Double Suction Single Stage Water Pump changes the game. Engineered with a unique double-suction design and single-stage simplicity, it delivers the large flow rates you need while keeping maintenance low and reliability high. Let’s explore why it’s the top choice for industries where “more water, less hassle” is non-negotiable.

Product Details

High flow double suction single stage water pump

What Makes High Flow Double Suction Single Stage Pumps Unique?

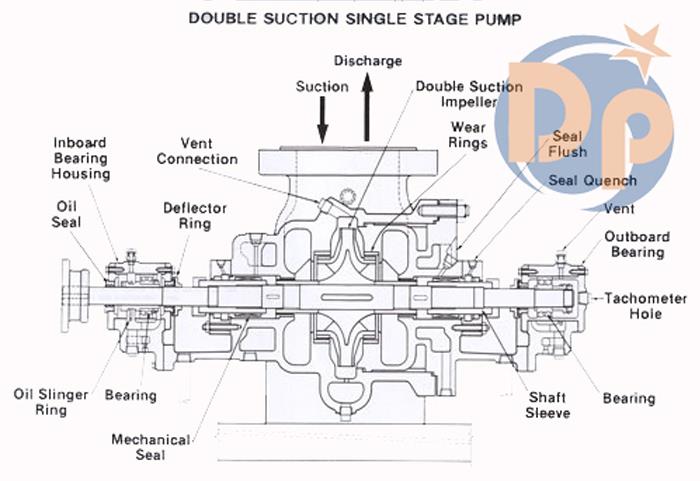

At the heart of this pump's power is its double suction impeller-a design that sets it apart from standard single-suction models. Unlike single-suction pumps (which pull water from one side, creating uneven pressure and axial thrust), double-suction impellers draw water from both sides of the impeller. This breakthrough design delivers three critical advantages:

Massive Flow Capacity: With flow rates ranging from 100 to 5,000+ m³/h (far beyond most single-suction pumps), it handles large-scale tasks like municipal water distribution or industrial cooling with ease.
Balanced Hydraulics: Symmetrical water intake eliminates axial thrust-reducing wear on bearings and shafts, and cutting vibration (a major cause of premature pump failure).
Low NPSH Requirements: The double-suction design creates a smoother flow path, lowering the Net Positive Suction Head (NPSH) needed to prevent cavitation. This means it can operate reliably even when water sources are at low levels (e.g., riverbeds, large storage tanks).

Add in a single-stage configuration (one impeller, no stacked stages), and you get a pump that's powerful and simple-no complex internal components to service, just straightforward, durable performance.

General Information

The S series pumps are single stage, double suction, horizontal split case pumps designed for high volume water transfer in a wide range of applications.

Centurion pumps are available in 43 sizes ranging from 80mm to 400mm discharge and capable of capacities up to 4000 cubic metres per hour and heads up to 160 metres.

Centurion pumps offer ease of maintenance with simple assembly/disassembly (no requirement for special tools). All major wear components and replaceable parts are easily accessible and can be changed out with minimal effort and downtime, without removing the suction and discharge piping.
