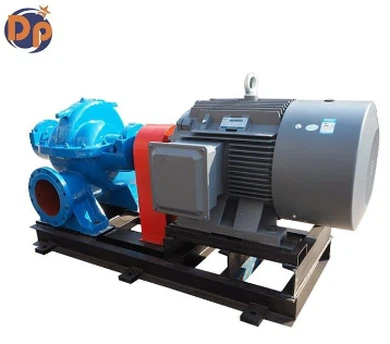

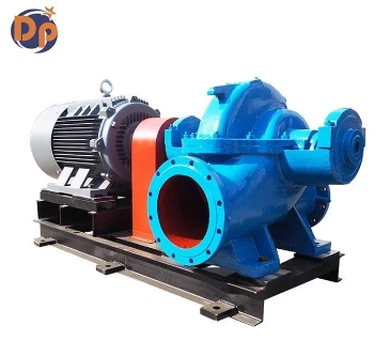

High Flow Double Suction Pumps
Product Details
High Flow Double Suction Pumps are designed to be used to address high capacity demands.This series of pumps is widely used in irrigation system and hydraulic engineering,modern urban water supply and sewerage,power generation,industrial process water intake and so on.And this series of pumps can be applicable multiple media to deliver because we introduce them with new material.Lots of users are surprised in their superior performance.
High Flow Double Suction Pumps
1.Definition and Basic Design Features
High flow double suction pumps are designed a simple structure of axially split structure by taking advantage of two symmetrically arranged impellers with function of self-balancing axial force.And we have updated the structural designing as below on the basic of retain the simple structure so it has improved operating reliability of type of model.
2.Advantages
High efficiency and capacity:High flow double suction pumps are adapt at applications where high flow rates are required.
simple structure and easy to overhaul:When the pump maintenance is required, there is no need to disassemble the inlet and outlet water pipes and the prime motor.We select symmetrical arrangement characteristics of double suction impellers.
Progressive sealing type:We adopt a universal design for the product shaft seal,users can replace different types of sealing more convenient to various requirement of application environment.
3.Type of shaft seal
Packing,mechanical seal,soft packing.
4.Description of Pump Type
200MS63A-L-F(M/Y)-J
200-The suction port diameter of the pump
MS-MS Single stage double suction, centrifugal split case pump
63-Head(m)
A-Change in outer diameter of pump impeller(the max diameter without mark)
L-Vertical type
F-Anti-corrosive
M-Wear-resistant type
Y-Oil resistant type
J-Pump speed change(Maintain the speed without mark)
Conclusion
In conclusion,High Flow Double Suction Pumps are suitable for various industrial fields and is loved by users due to its high flow rate and convenient maintenance. We attach great importance to energy conservation and environmental protection, and have strict control standards in raw material procurement. We adopt the optimal material combination for over current components to achieve reliable, safe, and efficient operation.
To know more information about our High Flow Double Suction Pumps, please feel free to contact with us.
