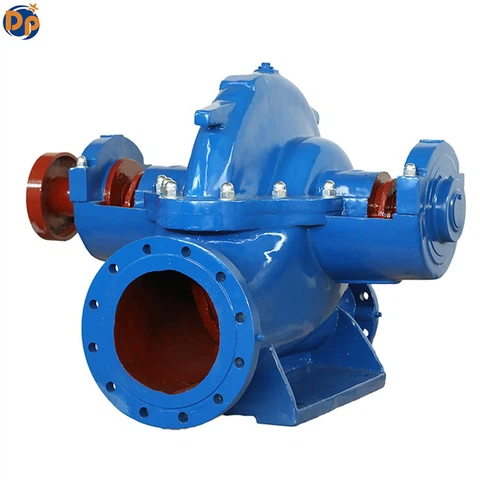

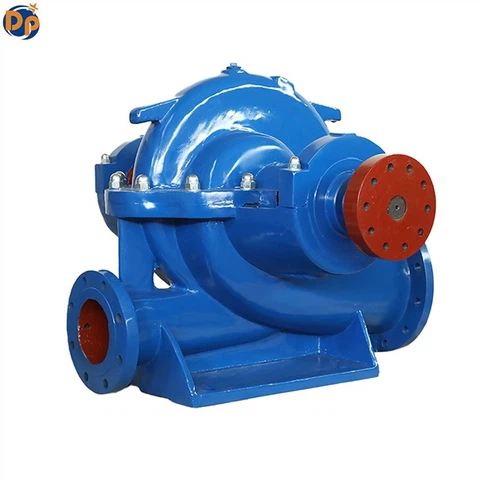

DOUBLE SUCTION PUMP FOR AGRICULTURE

Double suction pump pump body is two suction chamber, the suction inlet and outlet are under the pump shaft line, the impeller is equivalent to two of the same size of the single suction impeller working together, and the single stage centrifugal pump impeller diameter size is the same as the flow is twice the size of the single suction pump.

Product Details

HIGH FLOW DOUBLESUCTION PUMP INTRODUCTION

1. Pump type

The main components of this type of pump are: pump body, pump cover, impeller, shaft, double suction seal ring, shaft sleeve, bearing, etc. In addition to the shaft material for high quality carbon steel, the rest of the cast iron. The pump body and the pump cover constitute the workshop of the impeller. The inlet and outlet water flange is provided with a tube screw hole for installing the vacuum gauge and pressure gauge, and the inlet and outlet water flange is provided with a tube screw hole for discharging water.

product-750-750

2. Pump sepcific

Compact structure: beautiful appearance, good stability, easy to install.

Smooth operation: The optimized design of the double suction impeller reduces the axial force to a minimum, and has excellent hydraulic performance of the blade, and by precision casting, the inner surface of the pump shell and the impeller surface is extremely smooth with significant anti-cavitation performance and high efficiency.

Shaft seal: choose BURGMANN mechanical seal or packing seal. Can guarantee 8000 hours of operation without leakage. Bearings: SKF and NSK bearings are selected to ensure smooth operation, low noise and long service life. Installation form: No adjustment is required during assembly. It can be used according to site conditions. Separate vertical or horizontal installation.

product-750-750

3. Pump application

Suitable for factories, mines, urban water supply, power stations, farmland drainage and irrigation and various water conservancy projects.

Widely used in urban water supply and drainage, urban water supply;

Central heating system water supply and drainage;

Water supply and drainage of iron and steel metallurgy enterprises, petrochemical refineries, paper mills, thermal power plants, power stations, etc.;

Fire control system water supply and air conditioning system water supply for commercial buildings, factories and mines;

Farmland drainage irrigation and a variety of water conservancy projects.
