Centrifugal Water Pump Irrigation Pump ISO2858 Stander

Centrifugal Water Pump Irrigation Pump Mining Water Pump

Pump specifications:

Model: ISO150X125-315

Inlet/outlet size: DN150/DN125

Flow: 187m3/h

Head: 30.5m

Npsh: 2.7m

Motor model: Y180L-4/22

Power: 22kw

Speed: 1450 rpm

Voltage/frequency:380v/50hz/3phases

Eff: 82%

Sealing method: mechanical seal

Material:

Pump casing: cast iron

Impeller: stainless steel 316

Shaft: stainless steel 420

Spare parts:

1:

Name: Mechanical seal

Model: M7N

Material: Graphite & Silicon Carbide & PTFE

2:

Name: Seal ring

Size: 186x200x22 mm

Material:

Stainless steel 316

3:

Name: Impeller

Material: Stainless steel 316

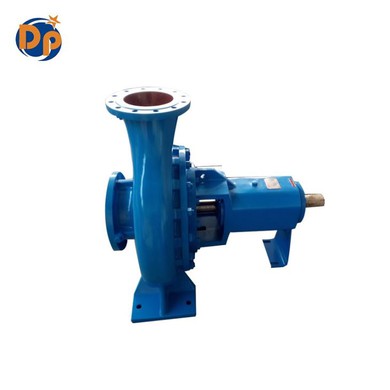

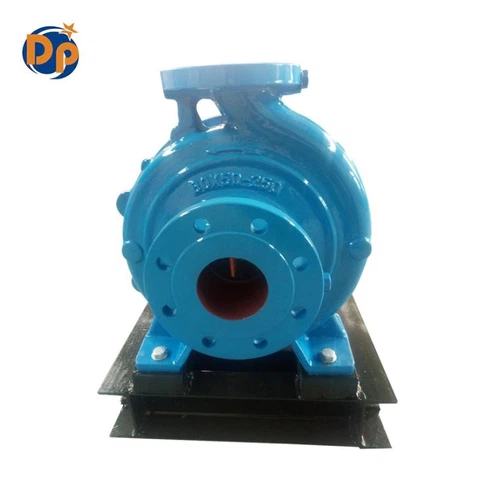

Pump picture:

pump curve data:

Pump dimension drawing:

We have the key to deal with the pump! hope to win the order together!
