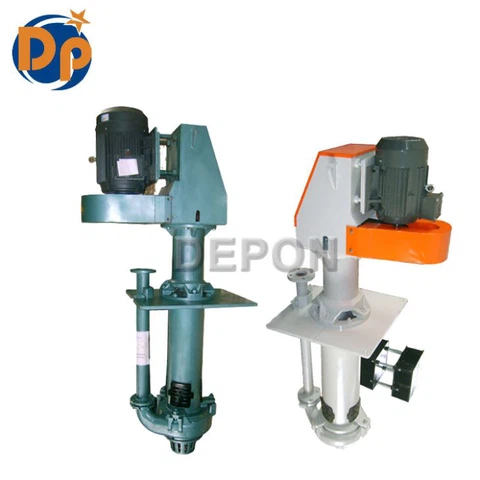

MSP-65Q High Pressure And Mining, Mud Vertical Slurry Pump

Vertical, shaft driven centrifugal slurry pumps. Rugged pumping solution for the transfer of slurries and large particles from sumps, pits, tanks and other fixed submersible applications.

Product Details

General Information

The MSP-65Q High Pressure and Mining, Mud Vertical Slurry Pump is a kind of vertical submerged slurry pumps have been designed to work over sumps and pits to transfer abrasive large particles and high density slurries.

Features

27% chrome white iron or rubber impeller.

27% chrome white iron or rubber coated cast iron wetted components.

Cantilevered design means that there is no shaft sealing requirement.

MSP-65Q High Pressure and Mining, Mud Vertical Slurry Pump

SPECIFICATIONS

Outlet Dia. (mm)	Bearing Frame	Max power (kw)	Max Particle Size (mm)	Pumping Depth (mm)	No. of Vanes	Impeller Material	Wear Liner Material
65	Q	30	15	900/1200/1500	5	A05	A05
