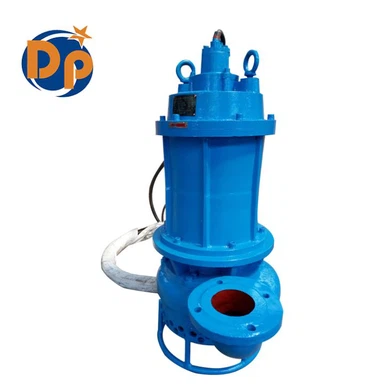

Mining Industrial Submersible Slurry Pump SS100-18-11

High-chromium cast iron is the abbreviation of high-chromium white-mouth anti-wear cast iron. It is an anti-wear material with excellent performance and special attention. It has much higher wear resistance than alloy steel, and has much higher toughness and strength than ordinary white cast...

Product Details

Model:	SS100-18-11
Flow:	100m3/h
Head:	18m
Power:	11kw
Speed:	1460rpm
Eff.:	55%
Pump casing:	High chrome
Pump impeller:	High chrome
Shaft:	45#steel
Shaft seal:	Mechanical seal
Volts/Frequency:	380v,50hz,3phases

High-chromium cast iron is the abbreviation of high-chromium white-mouth anti-wear cast iron. It is an anti-wear material with excellent performance and special attention. It has much higher wear resistance than alloy steel, and has much higher toughness and strength than ordinary white cast iron. It also has good resistance to high temperature and corrosion, combined with convenient production and moderate cost. Known as one of the best anti-abrasive wear materials in the world.
