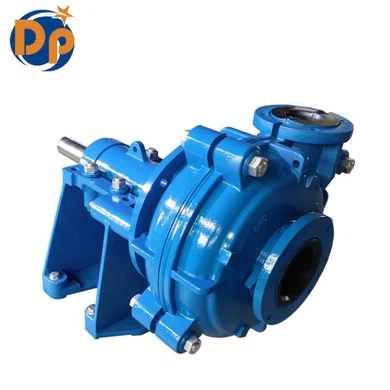

MAH(R) 1.5×1 Rubber Lined Corrosion Resistant Slurry Pump

The MAH series pumps are cantilevered, horizontal centrifugal slurry pumps designed for handling abrasive, high density slurries in a wide range of applications.

Product Details

General Application

Transfer of abrasive and high density corrosive slurries in:

-Mining

-Metallurgical Processing

-Civil Construction

-Heavy Industry

-Processing

and so on.

Model: MAH(R) 1.5×1

RUBBER LINED AND IMPELLER

MAH(R) 1.5×1Slurry pump Specifications

Inlet /Outlet Dia. (mm)	Bearing Frame	Max power (Kw)	Max Particle Size (mm)	No. of Vanes	Impeller Material	Impeller/Vane Dia.(mm)	Wear Liner Material
32/25	B	15	20	5	Rubber lined high tensile steel	159/152	A05
