Horizontal High Efficiency Mine Dewatering Slurry Pump

Name: Horizontal High Efficiency Mine Dewatering Slurry Pump Manufacturers and Factory China - Price List - DEPUMP
Brand: Depon
SKU: 32437588

Depon MAH series pumps are heavy duty horizontal slurry pumps designed to handle the transfer of abraisive and high density slurries in minging and heavy industry.

Download

Product Details

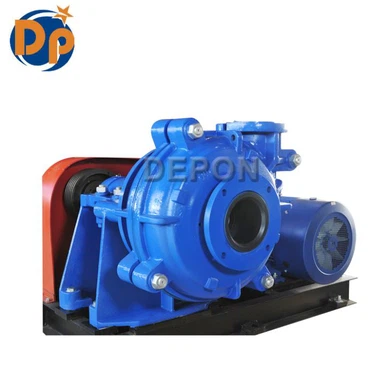

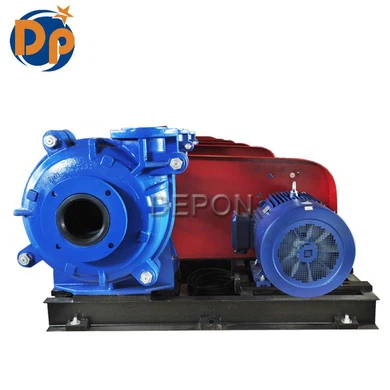

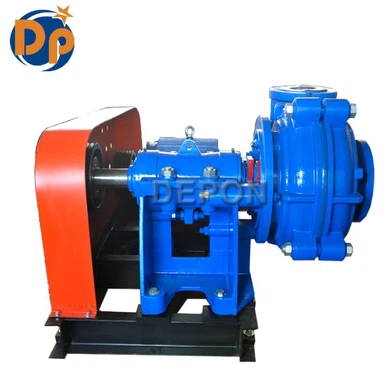

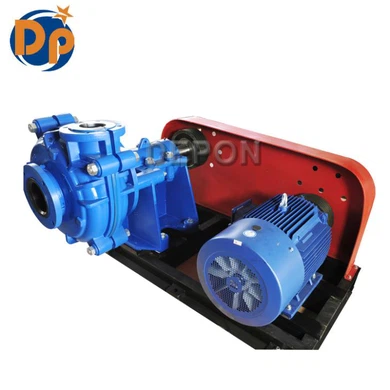

Horizontal High Efficiency Mine Dewatering Slurry Pump

Product Description:

DEPUMP MAH series pumps are heavy duty horizontal slurry pumps designed to handle the transfer of abraisive and high density slurries in minging and heavy industry.
All DEPUMP MAH slurry pumps are designed to be interchangeable with the most common slurry pump footprints used by the mining industry.
MAH pumps are manufactured using the highest quality materials to ensure reliability and extended service life in heavy duty applications.

Technical Data:

Usage	Slurry, sewage and water
Capacity	0- 3600m³/h
Head	0-112m
Speed	up to 3200r/min
Inlet/ouetlet Size	DN25mm-DN350mm
Max Temperature	110ºC
Drive	Electric or diesel

Features:

1. Bearing assembly:  large diameter shaft with short overhang contributes to long bearing life.
2. Liners:  Easily replaceable liners are bolted, not glued to the casing for positive maintenance.
3. Casing:  Casing halves of cast or ductile iron provide high operating pressure capabilities.
4. Impeller:  Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
5. Throatbush:  Wear is reduced and maintenance simplified by the use of tapered.

Performance Curve:

Selection Chart and Performance:

TYPE	Allowable Mating Max. power(KW)	Material		Clear Water Performance						Impeller
		Liner	Impeller	Capacity		Head(H)	Speed(n)	Max.Eff	NPSH	Impeller Dia.
		Liner	Impeller	(m³/h)	(L/s)	(m)	(r/min)	(%)	(m)	(mm)
1.5/1B-MAH	15	M	M	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	152
1.5/1B-MAH	15	RU	RU	10.8-25.2	3-7	7-52	1400-3400	35	2-4	152
1.5/1C-MHH	30	M	M	16.2-34.2	4.5-9.5	25-92	1400-2200	20	2-5.5	330
2/1.5B-MAH	15	M	M	32.4-72	9-20	6-58	1200-3200	45	3.5-8	184
2/1.5B-MAH	15	RU	RU	25.2-54	7-15	5.5-41	1000-2600	50	2.5-5	178
3/2C-MAH	30	M	M	39.6-86.4	11-24	12-64	1300-2700	55	4-6	214
3/2C-MAH	30	RU	RU	36-75.6	10-21	13-46	1300-2300	60	2-4	213
3/2D-MHH	60	M	M	68.4-136.8	19-38	25-87	850-1400	47	3-7.5	457
4/3C-MAH	30	M	M	86.4-198	24-55	9-52	1000-2200	71	4-6	245
4/3C-MAH	30	RU	RU	79.2-180	22-50	5-34.5	800-1800	59	3-5	245
4/3E-MHH	120	M	M	126-252	35-70	12-97	600-1400	50	2-5	508
6/4D-MAH	60	M	M	162-360	40-100	12-56	800-1500	65	5-8	365
6/4D-MAH	60	RU	RU	144-324	40-90	12-45	800-1350	65	3-5	365
6/4S-MHH	560	M	M	324-720	90-200	30-118	600-1000	64	3-8	711
6S-MHH	560	M	M	468-1008	130-280	20-94	500-1000	65	4-12	711
8/6E-MAH	300	M	M	360-828	100-230	10-61	500-1140	72	2-9	510
8/6E-MAH	300	RU	RU	324-720	90-200	7-49	400-1000	65	5-10	510
10/8E-MM	120	M	M	666-1440	185-400	10-60	600-1100	73	4-10	549
10/8ST-MAH	560	M	M	612-1368	170-380	11-61	400-850	71	4-10	686
10/8ST-MAH	560	RU	RU	540-1188	150-330	12-50	400-750	75	4-12	686
12-10ST-MAH	560	M	M	936-1980	260-550	7-68	300-800	82	6	762
12-10ST-MAH	560	RU	RU	720-1620	200-450	7-45	300-650	80	2.5-7.5	762
14/12ST-MAH	560	M	M	1260-2772	350-770	13-63	300-600	77	3-10	965
14/12ST-MAH	560	RU	RU	1152-2520	320-700	13-44	300-500	79	3-8	965
16/14TU-MAH	1200	M	M	1368-3060	380-850	11-63	250-550	79	4-10	1067
20/18TU-MAH	1200	M	M	2520-5400	700-1500	13-57	200-400	85	5-10	1370

Pump Parts Material:

Metal Lined Pumps		Rubber Lined Pumps
Part Description	Material Specification	Part Description	Material Specification
Base	Cast Iron	Base	Cast Iron
Shaft	4140 High Tensile Steel	Shaft	4140 High Tensile Steel
Bearing Assembly	Timken(Cast Iron Body)	Bearing Assembly	Timken(Cast Iron Body)
Shaft Sleeve	420 Stainless Steel	Shaft Sleeve	420 Stainless Steel
pump Casing	Cast Iron	pump Casing	Cast Iron
Frame Plate Liner	27% Chrome White Iron	Frame Plate Liner Insert	Rubber
Volute Liner	27% Chrome White Iron	Cover Plate Liner	Rubber
Impeller	27% Chrome White Iron	Impeller	Rubber Coated High Tensile Steel
Throat Bush	27% Chrome White Iron	Throat Bush	Rubber
Joint Ring	Rubber	Cover Plate	Cast Iron
Cover Plate	Cast Iron	Stuffing Box	Cast Iron
Stuffing Box	Cast Iron	Expeller	27% Chrome White Iron
Expeller	27% Chrome White Iron	Expeller Ring	Natural Rubber
Expeller Ring	Natural Rubber	Bolts	Zinc Plated Steel
Bolts	Zinc Plated Steel	O-rings	Nitrile Rubber
O-rings	Nitrile Rubber	Seals	Rubber
Seals	Rubber
