Horizontal Centrifugal Slurry Sewage Sludge Pump Rubber Liner City Work
Product Details
Horizontal Centrifugal Slurry sewage Sludge Pump Rubber Liner City work
Basic Info
Model: 12/10ST-MAH
Flowrate: UP TO 500L/S
Head: UP TO 68m
Max. particle size: 86mm
Power: UP TO 560KW
Impeller vanes: 5
Wet ends material: High Chrome Iron
Efficiency: up to 80%
Speed: from 300rpm to 800rpm
Driven type: Electric motor or Diesel engine
Application:
Slurry Pumps are widely used in different mining, like
Gold mining
Cooper mining
High chrome mining
Iron mining
Coal mining
Also used in the plant, like
Power plant
Steel plant
Aluminum plant
For Sand dredging or dewatering in the dam.

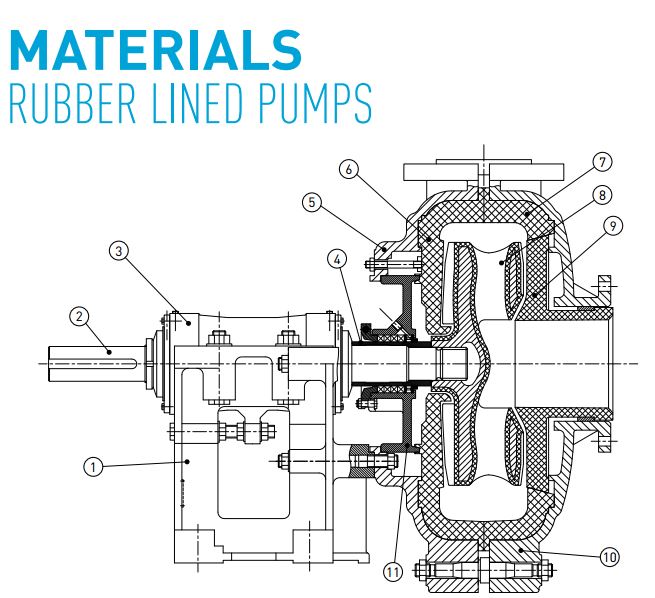

Pump Structure
Materials of Construction
LINERS | IMPELLERS | CASING | BASE | EXPELLER | EXPELLER RING | SHAFT SLEEVE | SEALS | |
Standard | High chrome | High chrome | SG Iron | SG Iron | High chrome | High chrome | SG Iron | Rubber |
Options | Ferralium | Ferralium | SG Iron | MS | NI Resist | NI Resist | EN56C | Ceramic |
Type Notation :
12/10 ST-MAH
12------ Suction Diameter(inch)
10------- Discharge Diameter(inch)
MAH-------- DE PUMP model
MAH SLURRY PUMP PERFORMANCE PARAMETERS
Type | Allowable Mating Max. Power(Kw) | Clear Water Performance | Impeller | |||||
Capacity/Q m3/hr | Head/m | Speed/rpm | Max Efficiency/% | NPSH/m | Nos of Vane | Impeller Diameter/mm | ||
1.5X1-MAH | 15 | 12.6--28.8 | 6--68 | 1200--3800 | 40 | 2--4 | 5 | 152 |
2X1.5-MAH | 15 | 32.4--72 | 6--58 | 1200--3200 | 45 | 3.5--8 | 5 | 184 |
3X2-MAH | 30 | 39.6--86.4 | 12--64 | 1300--2700 | 55 | 4--6 | 5 | 214 |
4X3-MAH | 30 | 86.4--198 | 9--52 | 1000--2200 | 71 | 4--6 | 5 | 245 |
6X4-MAH | 60 | 162--360 | 12--56 | 800--1550 | 65 | 5--8 | 5 | 365 |
8X6-MAH | 300 | 360--828 | 10--61 | 500--1140 | 72 | 2--9 | 5 | 510 |
10X8-MAH | 560 | 612--1368 | 11--61 | 400--850 | 71 | 4--10 | 5 | 686 |
12X10-MAH | 560 | 936--1980 | 7--68 | 300--800 | 82 | 6 | 5 | 762 |
14X12-MAH | 560 | 1260--2772 | 13--63 | 300--600 | 77 | 3--10 | 5 | 965 |
16X14-MAH | 1200 | 1368--3060 | 11--63 | 250--550 | 79 | 4--10 | 5 | 1067 |
18X16-MAH | 1200 | 2520--5400 | 13--57 | 200--400 | 85 | 5--10 | 5 | 1370 |
Company Profile
DEPump TECHONLOGY Co.,Ltd is a pump manufacture and specialized in slurry pumps, sewage pumps, water pumps, and spare parts. In our factory, we have Mould Workshop, Casting Workshop, Machining Workshop and Assembly Workshop, most of the main model have in stock.
Considering various requirement for material in the market, we can supply wet end part material as following,
Metal material A05,A07,A12,A33,A49,A61 and etc.
Rubber material R08, R26, R33,R55, S01, S12, S21, S31, S42 and etc.
So that, we could give our customers more and more selection in the pump solution.
DE Pump Slurry Pump series List
AH series | L(R) ,M | HH | SP(R) | G | AF Series |
1.5/1B-MAH(R) | 20A-ML | 1.5/1C-MHH | 40PV-MSP(R) | 6/4D-MG | 2QV-MAF |
2/1.5B-MAH(R) | 50B-ML(R) | 3/2D-MHH | 65QV-MSP(R) | 8/6E-MG | 3QV-MAF |
3/2C-MAH(R) | 75C-ML | 4/3E-MHH | 100RV-MSP(R) | 10/8F-MG | 6SV-MAF |
4/3C-MAH(R) | 100 D-ML | 4/3X-MHH | 150SV-MSP(R) | 10/8S-MG | 8SV-MAF |
6/4D-MAH(R) | 150E-ML | 6/4F-MHH | 200SV-MSP | 12/10G-MG | |
6/4E-MAH(R) | 300S-ML | 6/4X-MHH | 250TV-MSP | 14/12G-MG | |
8/6E-MAH(R) | 10/8 R-MM | 6S-MH | 14/12T-MG | ||
8/6R-MAH(R) | 10/8 E-MM | 8/6S-MH | 16/14 G-MG | ||
10/8F-MAH(R) | 8/6X-MH | 16/14TU-MGH | |||
10/8X-MAH(R) | 6S-MHP | 16/14H-MGH | |||
12/10ST-MAH(R) | 8/6S-MHP | 18/16G-MG | |||
14/12ST-MAH(R) | 8/6X-MHP | 18/16 TU-MGH | |||
16/14TU-MAH(R) | |||||
20/18G(TU)-MAH(R) |
Slurry pump selection tips:
a, Horizontal slurry pump: MAH, MZJ
b, Horizontal high head slurry pump: MHH
c, Large particle passing slurry pump: MG
d, Submersible slurry pump: SS
Water pump selection tips:
a, normal water pump: ISA, IS
b, ISO2858 standard pump: ISO
c, Large volume water pump: S
d, High pressure water pump: D
c, Self priming water pump: ZX, ZW
e, Submersible sewage pump: WQ
Horizontal Centrifugal Slurry sewage Sludge Pump Rubber Liner City work is widly sold around the world, especially in gold mining, high chrome mining, cooper mining, iron mining, power plant, steel plant, etcs.
If you have similar inquiry, please send us with more specific as below:
a, Flowrate: ___m3/h
b, Head: ___m
c, Voltage & Frequency: ___v___hz___ph
d, Liquid medium: solid specific gravity, PH value
