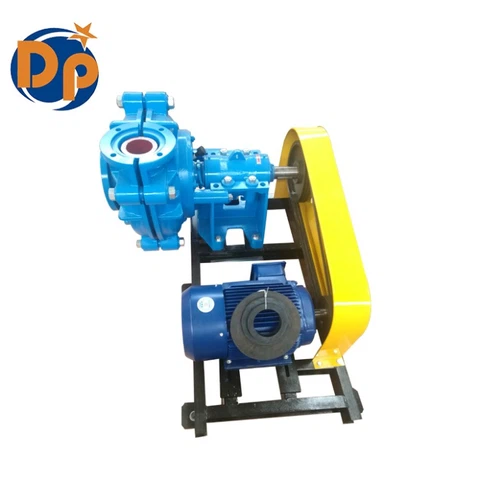

Horizontal Centrifugal Dewatering Mining Slurry Pump With Electric Motor Driven

MAH pumps are manufactured to be interchangeable with the most common slurry pump designs and feature a wide range of options. MAH Slurry Pumps provide rugged performance and reliability in the most demanding slurry pumping applications.

Product Details

Horizontal Centrifugal Dewatering Mining Slurry Pump with Electric Motor Driven

6x4D MAH TYPE SLURRY PUMP
Model	6x4D-MAH with motor
Capacity	90 m3/h
Head	15 m
Power	15 kw
Color	As Customer Required
Casing material	Cast iron
Impeller material	27% chrome alloy
Shaft material	40Cr
Shaft seal	Gland packing
Shaft sleeve material	2Cr13
Motor power	15 kw
Motor speed	1750 rpm
Motor volts /frequency	460v/60 hz
Motor Phase	3
Motor Protection grade	IP55
Motor Insulation Class	F

Performance Curve

6-4D MAH CURVE

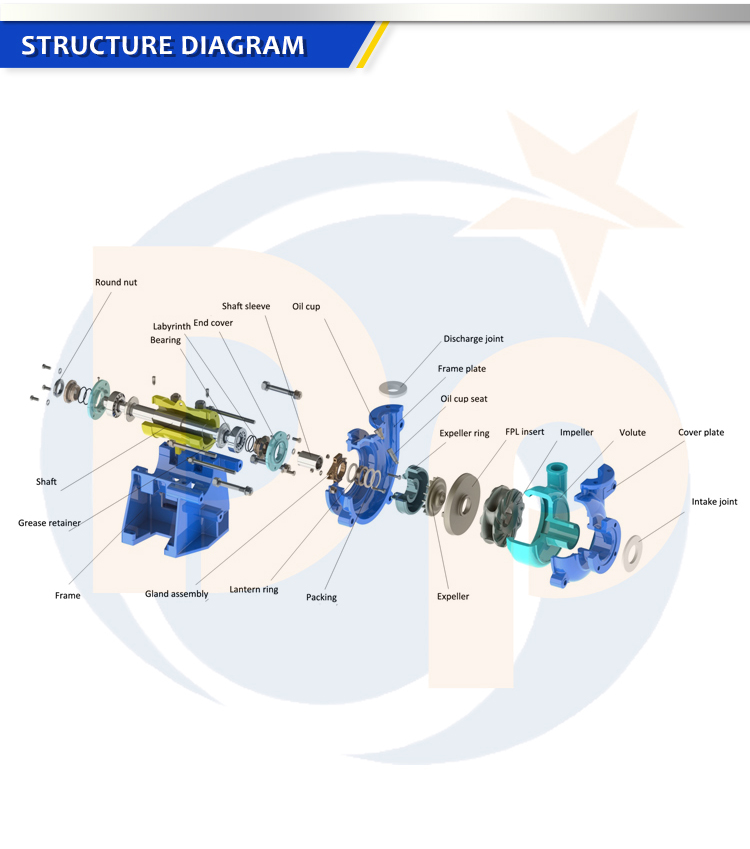

Structure Of Pump

MAH_05

20-24-30 Inches Gear Built-in Sand Gravel Dredger Pump Slurry Water Pump.jpg

High Efficiency Gravel Dredging Mud Sand Pump.jpg

High Pressure Large Flow Centrifugal Gravel Sand Dredging Pump.jpg

Heavy Duty Wear-Resistant Slush Pump.png
