High Pressure Centifugal Gold Mining Slurry Pump

slurry pumps — Product application The lining parts of XPA rubber slurry pump are made of Xinhai rubber which wins international prominence and recognizing by its extraordinary abrasion resistance. XPA rubber slurry pump is the ideal instrument of conveying corrosive materials whose maximum density is below 65% (by weight) and whose temperature is in the range of 40°C~70°C. It has advantages as follows: smooth operation; energy saving; low noise; high flow and head; low production cost; high efficiency; easy maintenance; long service life. Application range Concentrating/metallurgical plant: it deliveries a variety of slurries. Sand plant: it feeds water and mineral sands to all kinds of classifying and dehydrating equipments. Coal preparation plant: it deliveries coal pulps; it also classifies, screens and conveys materials of heavy medium. Ceramic and glass plant: it is used to convey porcelain clay and sands, feed hydraulic cyclone, and dispose effluent. Steel plant: it conveys slurry, rust and corrosive liquid. Please specify it to us if the pump is applied to places where oil or chemical stuffs are present.

Product Details

Overview

Theory:Centrifugal Pump

Structure:Single-stage Pump

Usage:slurry,mine coal

Power:Electric

Standard or Nonstandard:Standard

Fuel:Diesel

Pressure:standard

Application:slurry,mine coal

slurry pumps certificate:ISO 9001, CE

Centrifugal Pump Price:negotiable

installation:technical guidance

after sale service:the whole using life

warranty:one year

SupplyAbility

SupplyAbility:400 Set/Sets per Month

slurry pump (1).jpg

slurry pump (2).jpg

slurry pump (5).jpg

Product Advantages

slurry pumps —Product advantages

1.Smooth operation; less energy consumption; low product cost

2.High flow rate and head; low maintenance

3.Low noise

Product curve

SLURRY pump curve.png

pump curve.png

slurry pumps — Product feature

XPA rubber slurry pump has features as follows: smooth operation; energy saving; low noise; high flow and head; low production cost; high efficiency; easy maintenance; long service life.

slurry pumps — Product application

The lining parts of XPA rubber slurry pump are made of Xinhai rubber which wins international prominence and recognizing by its extraordinary abrasion resistance. XPA rubber slurry pump is the ideal instrument of conveying corrosive materials whose maximum density is below 65% (by weight) and whose temperature is in the range of 40°C~70°C. heavy duty

slurry pumps — Product principle

The course of using centrifugal force to increase pressure on conveying medium is also the course of transmitting and transforming energy. With impellers, the pump transforms and transmits mechanical energy produced by motor into pressure energy and kinetic energy for fluid.

The pump consists of shell and impellers which are situated on the main shaft and constitute an integral part with prime mover. Prime mover drives impellers to rotate and then impellers drives fluid to rotate, which increase the kinetic energy and potential energy. The pressurized water process and the water absorption process simultaneously take place. The pressurized water process occurs and consists of three stages: liquid is moved from impeller center to rim by the inertia force; liquid moves off impellers and enters into discharge chamber; liquid is discharged via discharging pipes. When liquid moves from impeller center towards rim, a low pressure area around impeller center is formed. When the vacuum around impeller center is high enough, liquid is absorbed in absorption chamber and sent towards impellers by the pressure of absorption end (the pressure is usually the atmospheric pressure). With the continuous operation of impellers, liquid is continuously absorbed and discharged.

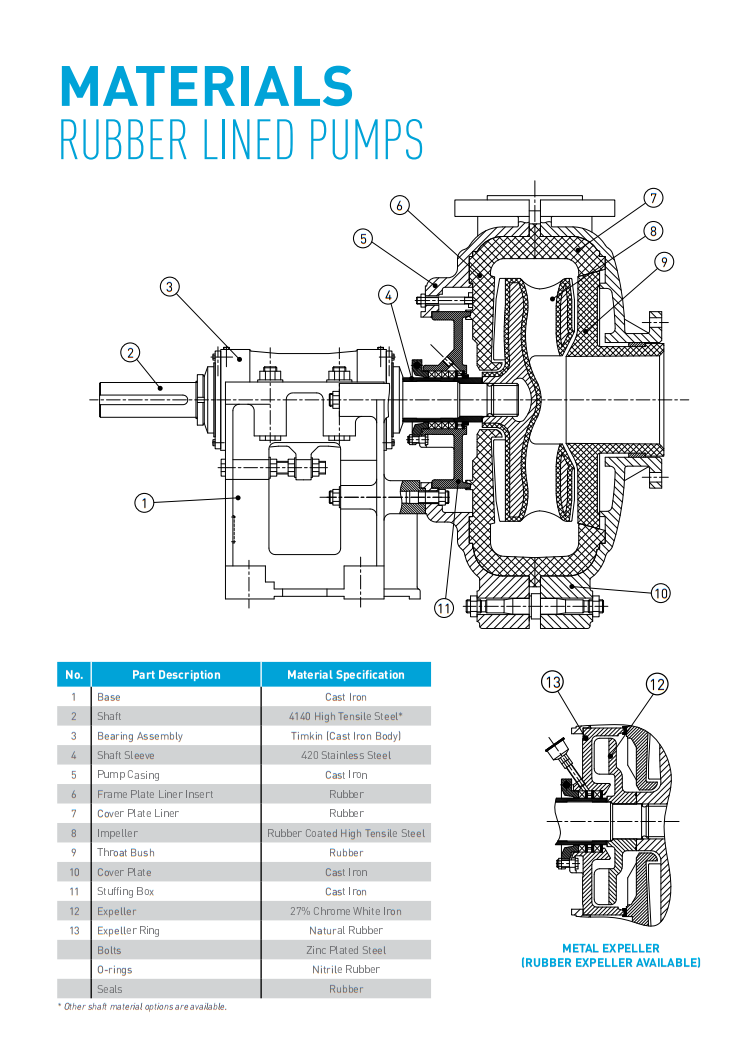

slurry pumps — Dimensions
