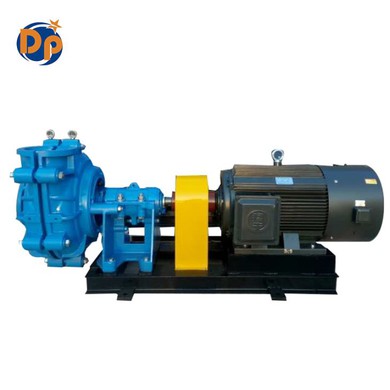

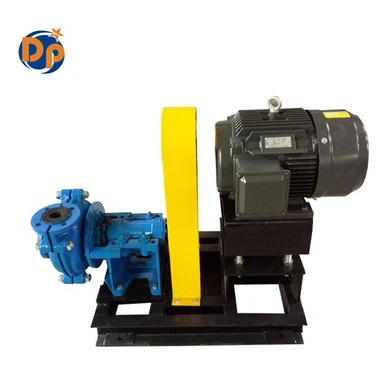

High Efficiency Horizontal Centrifugal Anti-abrasive Slurry Pump
Product Details
Wholesale Large Capacity Centrifugal Abrasion Resistance Mining Mud Slurry Pump
The Depump® slurry pump is the world’s standard for the most difficult mill duties. A wide variety of
impellers and shaft seals provide a perfect fit for a wide range of applications. The Depump® slurry pump
provides excellent wear life while maintaining efficiency during the wear cycle providing the best total
operating cost.
| 6x4D MAH TYPE SLURRY PUMP | |
| Model | 6x4D-MAH with motor |
| Capacity | 90 m3/h |
| Head | 15 m |
| Power | 15 kw |
| Color | As Customer Required |
| Casing material | Cast iron |
| Impeller material | 27% chrome alloy |
| Shaft material | 40Cr |
| Shaft seal | Gland packing |
| Shaft sleeve material | 2Cr13 |
| Motor power | 15 kw |
| Motor speed | 1750 rpm |
| Motor volts /frequency | 460v/60 hz |
| Motor Phase | 3 |
| Motor Protection grade | IP55 |
| Motor Insulation Class | F |
Features
· Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.
· Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.
· Casing – Casing halves of cast or ductile iron provide high operating pressure capabilities.
· Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
· Throatbush – wear is reduced and maintenance simplified by the use of tapered.
Application
Mining
Coal
Metallurgy
Civil Construction
Heavy Industry
SINCE 1998
20+ years manufacting and exporting pump experience,more options and solutions available for you.
Advanced equipment
Professional engineer
Updated design
Excellent quality
Factory direct price
Professional knowledge and attentive service
Strict quality inspection and timely delivery
Highly value every order, no matter how small it is.
offer confidentiality agreement "business secret contract"
Product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to replace.
Q: How can I make order online?
A: Send email or skype us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 sets.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, MoneyGram
Q: Which shipping terms are available?
A: By sea, DHL, TNT( express for spare parts)
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money.Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery
Q: Can I buy parts separately?
A: Yes,all of the parts can buy separately.
Q:What information I need to offer for quotation?
A:Pump Capacity___m3/h Pump Head: ___m PH:_____
Liquid:___ Frequency ___Hz
Specific of gravity___ Voltage ___V
