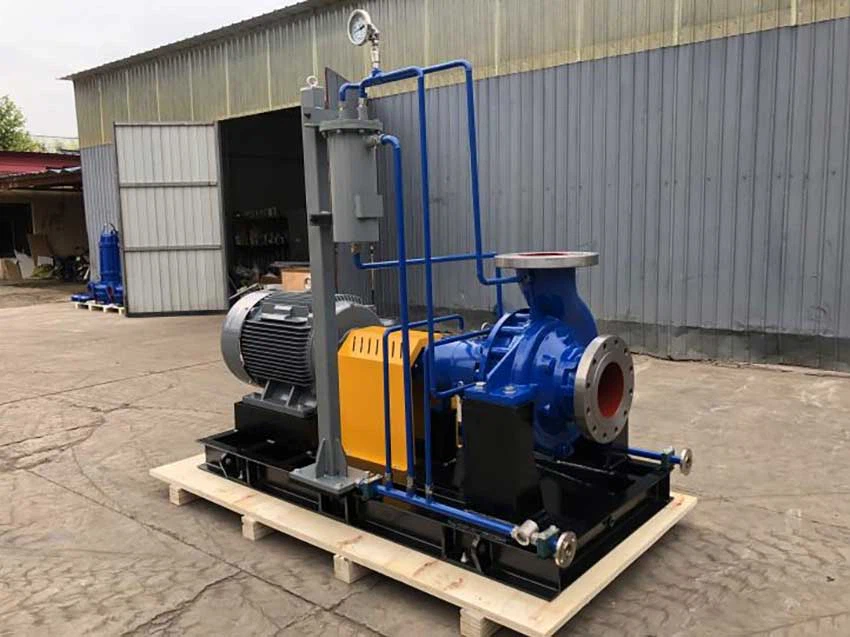

Chemical Process Crude Oil Pump
Product Details
Our Chemical process crude oil pump have multiple series, including ZA/ZE and other oil transfer pumps. This article will explain the oil transfer pump to you with a case study. If you also have the need to transfer oil, this article will help you.

ZA series Chemical process crude oil pump parameter range
| Flow rate | up to m³/h |
| Lift | up to 250m |
| Working pressure | up to 2.5MPa |
| Working temperature | -20℃~+180℃ |
ZE series Chemical process crude oil pump parameter range
| Flow rate | up to m³/h |
| Lift | up to 250m |
| Working pressure | can reach 2.5~8.0MPa |
| Working temperature | -20℃~+450℃ |
ZA and ZE series Chemical process crude oil pump is designed in accordance with API610 standards. They are suitable for transporting clean or particle-containing liquids, as well as neutral or corrosive liquids. The material of this pump is resistant to high temperature and high pressure.
One of my customers in the Middle East previously sent an inquiry for an oil pump. The medium he needed to transport was diesel. It also provides the temperature, density and viscosity of the oil. This information must be provided when making an inquiry.

| Flow | 150m³/h |
| Head | 110 |
| Temperature | 20℃~40℃ |
| Density | 850kg/m³ (20℃) 830kg/m³(40℃) |
| Viscosity | 1.9-4.5cst at 40℃ |
According to his requirements, we chose a 75kw ZA series Chemical process crude oil pump. The flow-passing parts are made of cast steel and the flushing scheme is PL11. This pump can not only meet the customer's needs, but also has high quality and a very affordable price. If you also have needs for this kind of pump, please provide flow rate, head, specific medium, density, viscosity and temperature when enquiring, so that our technicians can choose the appropriate model and material according to your needs.
If you also have such needs, please feel free to contact us at any time.
