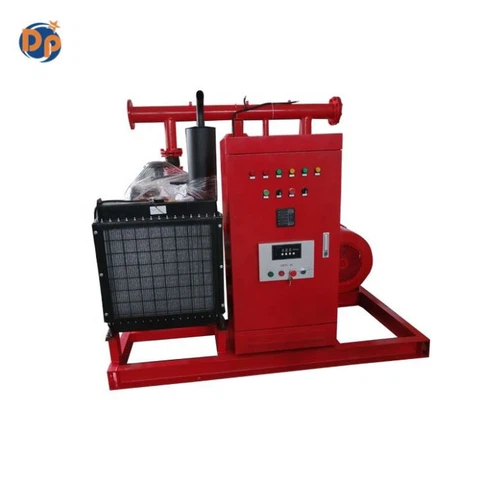

Fire Fighting System With Control Cabinet Water Pump

Fire fighting system specifications

1:Electric fire pump

Type:Horizontal split casing Centrifugal

Model:OTS200-670B

Inlet/outlet : 250/200mm

Flow:795m3/h(3500 GPM)

Head: 102m

Power: 315kw

Material:

Pump casing: cast iron

Impeller: SS304

Shaft: 410SS

2: Diesel fire pump

Type:Horizontal split casing Centrifugal

Model:XBC10.0/200-OTS

Inlet/outlet : 250/200mm

Flow:795m3/h(3500 GPM)

Head: 102m

Power: 315kw

Material:

Pump casing: cast iron

Impeller: SS304

Shaft: 410SS

3:Jockey pump

Type: Vertical inline

Model: CDL8-12

Inlet/outlet : 50/50mm

Flow: 8m3/h

Head: 111m

Power: 4kw

Material:

Pump casing: cast iron

Impeller: SS304

Shaft: 410SS
