Pump Control Cabinet
Product Details
The pump control cabinet is an electrical device used to control and manage the operation of water pumps, and is widely used in water supply systems, sewage treatment, industrial cooling, agricultural irrigation, fire protection systems, etc. It integrates electrical control, protection devices and intelligent monitoring functions to ensure the safe, efficient and stable operation of water pumps.
Main types of pump control cabinets:
(1) Classification by starting method.
1. Direct start control cabinet (DOL).
Applicable to small power motors (usually ≤15kW).
Simple structure, low cost, easy maintenance.

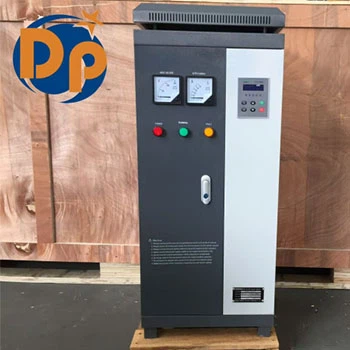

2. Soft start control cabinet (Soft Starter).
Smooth start, reduce mechanical shock, and extend the life of the pump.
Applicable to high power motors (above 75kW).
3. Variable frequency control cabinet (VFD).
Variable frequency speed regulation, energy saving and high efficiency (energy saving 20%-50%).
Precise control of flow and pressure, suitable for constant pressure water supply system.
(2) Classification by application scenario.
1. Ordinary water pump control cabinet (for industrial, agricultural, and building water supply).
2. Fire pump control cabinet (with dual power automatic switching, in line with fire protection regulations).
3. Submersible pump control cabinet (waterproof and moisture-proof design, suitable for deep wells or underwater pumps).
4. Explosion-proof pump control cabinet (Ex d/Ex e explosion-proof certification, suitable for hazardous environments such as petroleum and chemical industries).
5. Intelligent PLC control cabinet (programmable logic control, supporting remote monitoring).
Product performance and features
(1) Core performance
Efficient control: supports automatic control, can be used with pressure sensors, liquid level switches, etc. to achieve intelligent operation.
Multiple protections: overload, short circuit, phase loss, undervoltage, overvoltage, leakage protection to ensure equipment safety
Energy-saving optimization (variable frequency type): automatically adjust the speed according to demand to reduce energy consumption.
Remote monitoring (optional): supports Ethernet and other communications.
Product features of pump control cabinet:
High-quality components: use Schneider, and other international brand electrical components.
Sturdy and durable: protection level IP55/IP65, suitable for harsh environments such as moisture and dust.
Modular design: easy to install, maintain and upgrade.
Customized service: voltage (220V/380V/415V/480V, etc.), power, and control method can be adjusted according to customer needs.
Application areas:
Municipal engineering: water plants, sewage treatment plants.
Industrial field: cooling circulation system, chemical process pumps.
Agricultural irrigation: deep well pumps, centrifugal pump control.
Building water supply: high-rise constant pressure water supply system.
Fire protection system: fire pump automatic control.
