Duplex Stainless Horizontal Chemical Centrifugal Pumps Low Price

Name: Duplex Stainless Horizontal Chemical Centrifugal Pumps Low Price Manufacturers and Factory China - Price List - DEPUMP
Brand: DEPUMP
SKU: 79263865

Introduction The Depon® IH Serial chemical centrifugal pump is single stage suction cantilever centrifugal pumps. It used to deliver corrosive liquid which not containing solid particles and similar to water in viscidity. It featured by wide range of performance, high efficiency, superior...

Product Details

Introduction

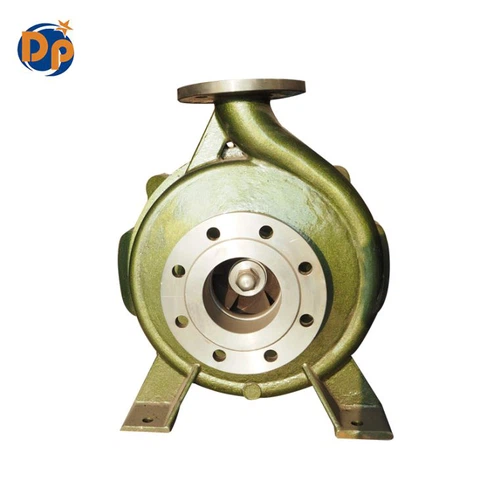

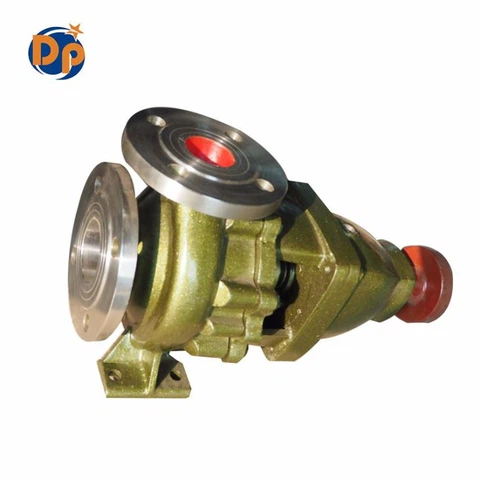

The DEPUMP® IH Serial chemical centrifugal pump is single stage suction cantilever centrifugal pumps. It used to deliver corrosive liquid which not containing solid particles and similar to water in viscidity. It featured by wide range of performance, high efficiency, superior standardzation, easy maintenance etc.
High efficiency Single-stage

Advantage
Durable, low noise, long life bearing
Premium quality mechanical seal
Electric or diesel drive

Performance

*Capacity: 6.3-400m3/h
*Head: 5-125m
*Speed: 2900r/min and 1450r/min
*Power of fitted motor: 0.55-90kw
*Inlet diameter: 50-200mm
*The max. working pressure: 1.6Mpa

IH Type Pump Performance
Type	Capacity(m3/h)	Head(m)	Speed(r/min)	Motor Power(kw)	Eff.(%)	NPSH(m)
IH50-32-125	7.5-15	18-23	2900	2.2	51	2
IH50-32-125	3.75-7.5	4.5-5.75	1450	0.55	45	2
IH65-50-125	15-30	18.6-21.3	2900	3	62	2
IH65-50-125	7.5-15	4.5-5.4	1450	0.55	55	2
IH65-40-315	15-30	124-136.8	2900	30	39	2
IH65-40-315	7.5-15	31.7-32.4	1450	5.5	33	2
IH80-65-160	30-60	28.4-36	2900	11	67	2
IH80-65-160	15-30	7.2-9	1450	1.5	62	2
IH100-65-200	60-120	44-56	2900	22	72	3.9
IH100-65-200	30-60	11-14	1450	3	68	2.5
IH125-100-250	120-240	73-90	2900	75	75	4.5
IH125-100-250	60-120	18.25-22.5	1450	11	72	2.3
IH150-125-315	120-240	28.5-36.3	1450	30	75	2.8
IH150-125-400	120-240	44-57.5	1450	55	70	2.5
IH200-150-315	240-460	29.4-35.6	1450	55	79	3.5
IH200-150-400	240-460	47-55.8	1450	90	78	3.5
